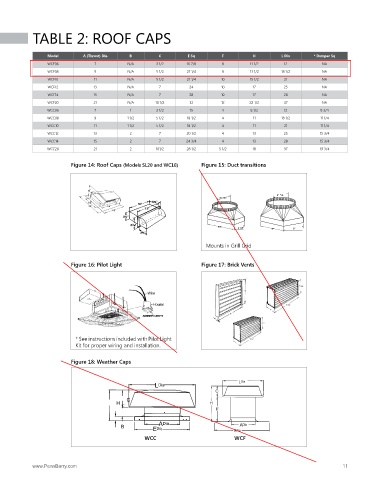

TABLE 2: ROOF CAPS

Model A (Throat) Dia B C E Sq F H L Dia * Damper Sq
WCF06 7 N/A 3 1/2 16 7/8 8 11 1/2 12 NA
WCF08 9 N/A 5 1/2 21 1/4 8 13 1/2 18 1/2 NA
WCF10 11 N/A 5 1/2 21 1/4 10 15 1/2 21 NA
WCF12 13 N/A 7 24 10 17 25 NA
WCF14 15 N/A 7 28 10 17 28 NA
WCF20 21 N/A 10 1/2 32 12 22 1/2 37 NA
WCC06 7 1 3 1/2 15 4 8 1/2 12 8 3/4
WCC08 9 1 1/2 5 1/2 18 1/2 4 11 18 1/2 11 1/4
WCC10 11 1 1/2 5 1/2 18 1/2 4 11 21 11 1/4
WCC12 13 2 7 20 1/2 4 13 25 15 3/4
WCC14 15 2 7 24 3/4 4 13 28 15 3/4
WCC20 21 2 101/2 28 1/2 5 1/2 18 37 19 3/4

Figure 14: Roof Caps (Models SL20 and WC10) Figure 15: Duct transitions

1O"

Mounts in Grill Grid

Figure 16: Pilot Light Figure 17: Brick Vents

Wire
Housin

* See instructions included with Pilot Light
Kit for proper wiring and installation.

Figure 18: Weather Caps

L Dia
L Dia
C
C
H H
F F

A Dia
B E Sq E Sq A Dia
WCC WCF
