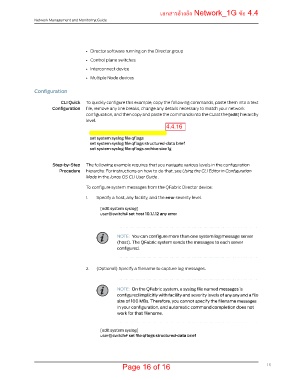

Page 337 - เอกสารตรวจรับระบบ dr site

เอกสารอ้างอิง Network_1G ข้อ 4.4

Network Management and Monitoring Guide

• Director software running on the Director group
• Control plane switches

• Interconnect device
• Multiple Node devices

Configuration

CLI Quick To quickly configure this example, copy the following commands, paste them into a text
Configuration file, remove any line breaks, change any details necessary to match your network
configuration, and then copy and paste the commands into the CLI at the [edit] hierarchy
level.
4.4.16
set system syslog host 10.1.1.12 any error
set system syslog file qflogs
set system syslog file qflogs structured-data brief
set system syslog file qflogs archive size 1g

Step-by-Step The following example requires that you navigate various levels in the configuration
Procedure hierarchy. For instructions on how to do that, see Using the CLI Editor in Configuration
Mode in the Junos OS CLI User Guide .
To configure system messages from the QFabric Director device:

1. Specify a host, any facility, and the error severity level.

[edit system syslog]
user@switch# set host 10.1.1.12 any error

NOTE: You can configure more than one system log message server
(host). The QFabric system sends the messages to each server
configured.

2. (Optional) Specify a filename to capture log messages.

NOTE: On the QFabric system, a syslog file named messages is
configured implicitly with facility and severity levels of any any and a file
size of 100 MBs. Therefore, you cannot specify the filename messages
in your configuration, and automatic command completion does not
work for that filename.

[edit system syslog]
user@switch# set file qflogs structured-data brief

Page 16 of 16 16
