Page 15 - CATALOG ONE DOC 170905

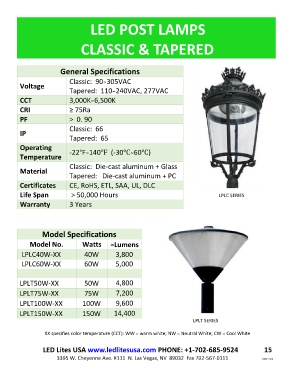

LED POST LAMPS

CLASSIC & TAPERED

General Specifications

Classic: 90 ̴305VAC
Voltage
Tapered: 110 ̴240VAC, 277VAC

CCT 3,000K ̴6,500K

CRI ≥ 75Ra
PF > 0. 90

Classic: 66
IP
Tapered: 65

Operating
Temperature -22°F ̴140℉ (-30℃ ̴60℃)
Classic: Die-cast aluminum + Glass
Material
Tapered: Die-cast aluminum + PC

Certificates CE, RoHS, ETL, SAA, UL, DLC
Life Span > 50,000 Hours LPLC SERIES

Warranty 3 Years

Model Specifications

Model No. Watts ≈Lumens
LPLC40W-XX 40W 3,800

LPLC60W-XX 60W 5,000

LPLT50W-XX 50W 4,800

LPLT75W-XX 75W 7,200

LPLT100W-XX 100W 9,600

LPLT150W-XX 150W 14,400

LPLT SERIES

XX specifies color temperature (CCT): WW = warm white; NW = Neutral White; CW = Cool White
