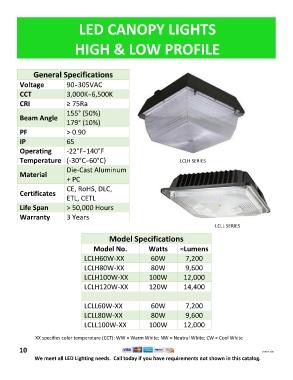

Page 10 - CATALOG ONE DOC 170905
P. 10
LED CANOPY LIGHTS
HIGH & LOW PROFILE
General Specifications
Voltage 90 ̴305VAC
CCT 3,000K ̴6,500K
CRI ≥ 75Ra
155° (50%)
Beam Angle
179° (10%)
PF > 0.90
IP 65
Operating -22°F ̴140°F
Temperature (-30°C ̴60°C) LCLH SERIES
Die-Cast Aluminum
Material
+ PC
CE, RoHS, DLC,
Certificates
ETL, CETL
Life Span > 50,000 Hours
Warranty 3 Years
LCLL SERIES
Model Specifications
Model No. Watts ≈Lumens
LCLH60W-XX 60W 7,200
LCLH80W-XX 80W 9,600
LCLH100W-XX 100W 12,000
LCLH120W-XX 120W 14,400
LCLL60W-XX 60W 7,200
LCLL80W-XX 80W 9,600
LCLL100W-XX 100W 12,000
XX specifies color temperature (CCT): WW = Warm White; NW = Neutral White; CW = Cool White
10 I10917-500
We meet all LED Lighting needs. Call today if you have requirements not shown in this catalog.
