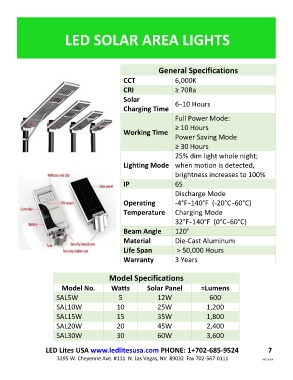

Page 7 - CATALOG ONE DOC 170905
P. 7
LED SOLAR AREA LIGHTS
General Specifications
CCT 6,000K
CRI ≥ 70Ra
Solar
6 ̴10 Hours
Charging Time
Full Power Mode:
≥ 10 Hours
Working Time
Power Saving Mode
≥ 30 Hours
25% dim light whole night;
Lighting Mode when motion is detected,
brightness increases to 100%
IP 65
Discharge Mode
Operating -4°F ̴140°F (-20°C ̴60°C)
Temperature Charging Mode
32°F ̴140°F (0°C ̴60°C)
Beam Angle 120°
Material Die-Cast Aluminum
Life Span > 50,000 Hours
Warranty 3 Years
Model Specifications
Model No. Watts Solar Panel ≈Lumens
SAL5W 5 12W 600
SAL10W 10 25W 1,200
SAL15W 15 35W 1,800
SAL20W 20 45W 2,400
SAL30W 30 60W 3,600
LED Lites USA www.ledlitesusa.com PHONE: 1+702-685-9524 7
3395 W. Cheyenne Ave. #111 N. Las Vegas, NV 89032 Fax 702-567-0111 IY0917-500
