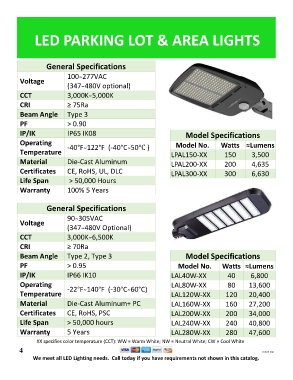

Page 4 - CATALOG ONE DOC 170905

LED PARKING LOT & AREA LIGHTS

General Specifications

100 ̴277VAC

Voltage
(347 ̴480V optional)
CCT 3,000K ̴5,000K
CRI ≥ 75Ra

Beam Angle Type 3
PF > 0.90

IP/IK IP65 IK08 Model Specifications
Operating -40°F ̴122°F (-40°C ̴50℃ ) Model No. Watts ≈Lumens

Temperature LPAL150-XX 150 3,500
Material Die-Cast Aluminum LPAL200-XX 200 4,635

Certificates CE, RoHS, UL, DLC LPAL300-XX 300 6,630
Life Span > 50,000 Hours

Warranty 100% 5 Years

General Specifications
90 ̴305VAC
Voltage
(347 ̴480V Optional)

CCT 3,000K ̴6,500K
CRI ≥ 70Ra

Beam Angle Type 2, Type 3 Model Specifications
PF > 0.95 Model No. Watts ≈Lumens

IP/IK IP66 IK10 LAL40W-XX 40 6,800
Operating LAL80W-XX 80 13,600
-22°F ̴140°F (-30°C ̴60°C)
Temperature LAL120W-XX 120 20,400
Material Die-Cast Aluminum+ PC LAL160W-XX 160 27,200

Certificates CE, RoHS, PSC LAL200W-XX 200 34,000
Life Span > 50,000 hours LAL240W-XX 240 40,800

Warranty 5 Years LAL280W-XX 280 47,600
XX specifies color temperature (CCT): WW = Warm White; NW = Neutral White; CW = Cool White
4 I10917-500

We meet all LED Lighting needs. Call today if you have requirements not shown in this catalog.
