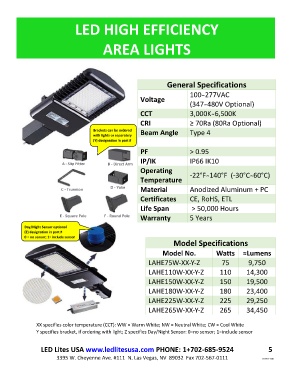

Page 5 - CATALOG ONE DOC 170905

LED HIGH EFFICIENCY

AREA LIGHTS

General Specifications
100 ̴277VAC
Voltage
(347 ̴480V Optional)

CCT 3,000K ̴6,500K
CRI ≥ 70Ra (80Ra Optional)

Brackets can be ordered Beam Angle Type 4
with lights or separately
(Y) designation in part #

PF > 0.95
IP/IK IP66 IK10
A - Slip Fitter B - Direct Arm
Operating
Temperature -22°F ̴140°F (-30°C ̴60°C)
D - Yoke
C - Trunnion Material Anodized Aluminum + PC
Mount
Certificates CE, RoHS, ETL

Life Span > 50,000 Hours
E - Square Pole F - Round Pole Warranty 5 Years

Day/Night Sensor optional
(Z) designation in part #
0 = no sensor; 1= include sensor
Model Specifications

Model No. Watts ≈Lumens
LAHE75W-XX-Y-Z 75 9,750
LAHE110W-XX-Y-Z 110 14,300

LAHE150W-XX-Y-Z 150 19,500

LAHE180W-XX-Y-Z 180 23,400
LAHE225W-XX-Y-Z 225 29,250
LAHE265W-XX-Y-Z 265 34,450

XX specifies color temperature (CCT): WW = Warm White; NW = Neutral White; CW = Cool White
Y specifies bracket, if ordering with light; Z specifies Day/Night Sensor: 0=no sensor; 1=include sensor
