creATing forMUlA-driven MAssing 321

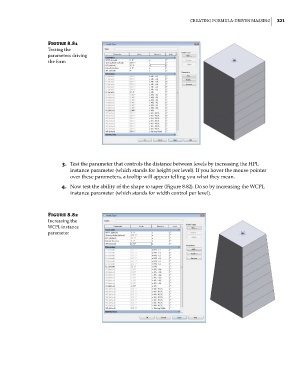

Figure 8.81
Testing the
parameters driving
the form

3. Test the parameter that controls the distance between levels by increasing the HPL
instance parameter (which stands for height per level). If you hover the mouse pointer
over these parameters, a tooltip will appear telling you what they mean.
4. Now test the ability of the shape to taper (Figure 8.82). Do so by increasing the WCPL
instance parameter (which stands for width control per level).

Figure 8.82
increasing the
WcPl instance
parameter
