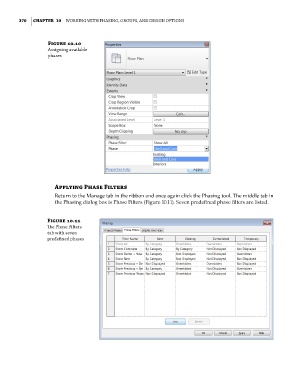

370 | ChaPter 10 Working With Phasing, grouPs, and design oPtions
Figure 10.10
assigning available
phases
applying Phase Filters
Return to the Manage tab in the ribbon and once again click the Phasing tool. The middle tab in
the Phasing dialog box is Phase Filters (Figure 10.11). Seven predefined phase filters are listed.
Figure 10.11
The Phase Filters
tab with seven
predefined phases
c10.indd 370 5/3/2014 11:04:36 AM
