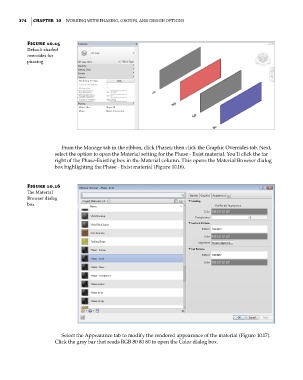

374 | ChaPter 10 Working With Phasing, grouPs, and design oPtions
Figure 10.15
default shaded
overrides for
phasing
From the Manage tab in the ribbon, click Phases; then click the Graphic Overrides tab. Next,
select the option to open the Material setting for the Phase - Exist material. You’ll click the far
right of the Phase-Existing box in the Material column. This opens the Material Browser dialog
box highlighting the Phase - Exist material (Figure 10.16).
Figure 10.16
The Material
Browser dialog
box
Select the Appearance tab to modify the rendered appearance of the material (Figure 10.17).
Click the gray bar that reads RGB 80 80 80 to open the Color dialog box.
