378 | ChaPter 10 Working With Phasing, grouPs, and design oPtions

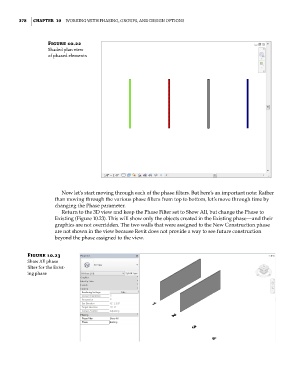

Figure 10.22
shaded plan view
of phased elements

Now let’s start moving through each of the phase filters. But here’s an important note: Rather
than moving through the various phase filters from top to bottom, let’s move through time by
changing the Phase parameter.
Return to the 3D view and keep the Phase Filter set to Show All, but change the Phase to
Existing (Figure 10.23). This will show only the objects created in the Existing phase—and their
graphics are not overridden. The two walls that were assigned to the New Construction phase
are not shown in the view because Revit does not provide a way to see future construction
beyond the phase assigned to the view.

Figure 10.23
show all phase
filter for the exist-
ing phase
