using Phasing 381

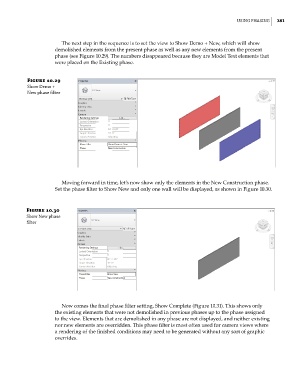

The next step in the sequence is to set the view to Show Demo + New, which will show
demolished elements from the present phase as well as any new elements from the present
phase (see Figure 10.29). The numbers disappeared because they are Model Text elements that
were placed on the Existing phase.

Figure 10.29
show demo +
new phase filter

Moving forward in time, let’s now show only the elements in the New Construction phase.
Set the phase filter to Show New and only one wall will be displayed, as shown in Figure 10.30.

Figure 10.30
show new phase
filter

Now comes the final phase filter setting, Show Complete (Figure 10.31). This shows only
the existing elements that were not demolished in previous phases up to the phase assigned
to the view. Elements that are demolished in any phase are not displayed, and neither existing
nor new elements are overridden. This phase filter is most often used for camera views where
a rendering of the finished conditions may need to be generated without any sort of graphic
overrides.
