unDeRstanDing VieW ContRols 425

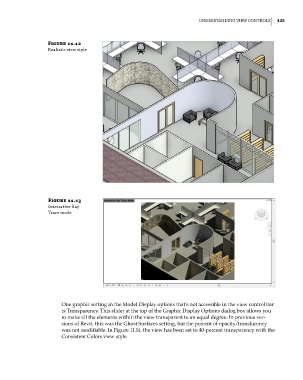

Figure 11.12
Realistic view style

Figure 11.13
interactive Ray
trace mode

One graphic setting in the Model Display options that’s not accessible in the view control bar
is Transparency. This slider at the top of the Graphic Display Options dialog box allows you
to make all the elements within the view transparent to an equal degree. In previous ver-
sions of Revit, this was the Ghost Surfaces setting, but the percent of opacity/translucency
was not modifiable. In Figure 11.14, the view has been set to 40-percent transparency with the
Consistent Colors view style.
