616 | ChaptEr 14 Designing with the Family eDitor

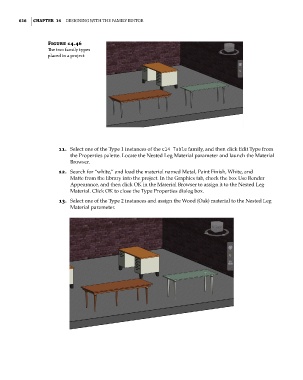

Figure 14.46
The two family types
placed in a project

11. Select one of the Type 1 instances of the c14 Table family, and then click Edit Type from
the Properties palette. Locate the Nested Leg Material parameter and launch the Material
Browser.
12. Search for “white,” and load the material named Metal, Paint Finish, White, and
Matte from the library into the project. In the Graphics tab, check the box Use Render
Appearance, and then click OK in the Material Browser to assign it to the Nested Leg
Material. Click OK to close the Type Properties dialog box.
13. Select one of the Type 2 instances and assign the Wood (Oak) material to the Nested Leg
Material parameter.
