696 | ChAPTer 16 Detailing Your Design

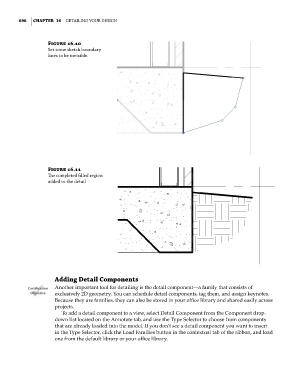

Figure 16.10
set some sketch boundary
lines to be invisible.

Figure 16.11
The completed filled region
added to the detail

Adding Detail Components

Certification Another important tool for detailing is the detail component—a family that consists of
Objective exclusively 2D geometry. You can schedule detail components, tag them, and assign keynotes.
Because they are families, they can also be stored in your office library and shared easily across
projects.
To add a detail component to a view, select Detail Component from the Component drop-
down list located on the Annotate tab, and use the Type Selector to choose from components
that are already loaded into the model. If you don’t see a detail component you want to insert
in the Type Selector, click the Load Families button in the contextual tab of the ribbon, and load
one from the default library or your office library.
