it’s also important to remember to zoom out from time to time and look at the project in context.
While it’s easy to get consumed making small things accurate, it’s also easy to forget to view all of
those things in the context of the project. take the opportunity to look at the big picture. in this
project, we created a 3d view of the keeper’s quarters using a section box. it’s good to reference
from time to time to see how your work is progressing.

6. The workflow for the rest of this building is very similar to the plan conditions. We’ve
duplicated the South, North, and West elevations, cropping the views down to only the
keeper’s quarters. As you step through each of these views, you’ll need to create families
to mimic the conditions of the existing building. As an example, in our plan we had to
measure and re-create the exterior walls. In the elevations, you’ll need to create the doors,
windows, and roof conditions (Figure 21.17).

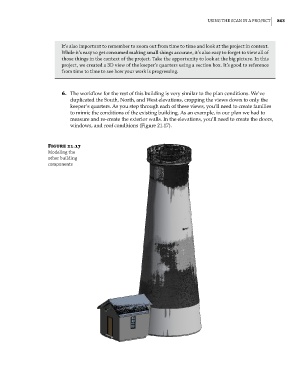

Figure 21.17
Modeling the
other building
components
