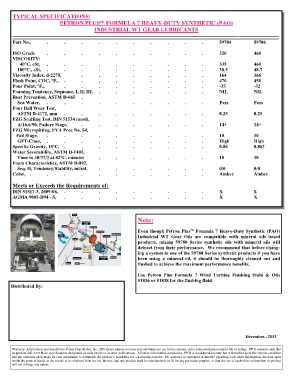

Page 120 - Petron Plus with Price List

TYPICAL SPECIFICATIONS:
PETRON PLUS FORMULA 7 HEAVY-DUTY SYNTHETIC (PAO)
TM
INDUSTRIAL WT GEAR LUBRICANTS
——————————————————————————————–——————–——-———————
Part No., . . . . . . . . . . 59784 59786

ISO Grade . . . . . . . . . . 320 460
VISCOSITY:
40°C, cSt, . . . . . . . . . . 335 460
100°C., cSt, . . . . . . . . . . 38.3 48.7
Viscosity Index, d-2270, . . . . . . . . 164 166
Flash Point, COC, °F., . . . . . . . . . 470 450
Pour Point, °F., . . . . . . . . . -35 -32
Foaming Tendency, Sequence, I, II, III, . . . . . . . NIL NIL
Rust Prevention, ASTM D-665 .
Sea Water, . . . . . . . . . . Pass Pass
Four Ball Wear Test,
ASTM D-4172, mm . . . . . . . . . 0.25 0.25
FZG Scuffing Test, DIN 51534 (mod),
A/16.6/90, Failure Stage, . . . . . . . . 14+ 14+
FZG Micropitting, FVA Proc No. 54,
Fail Stage, . . . . . . . . . . 10 10
GFT-Class, . . . . . . . . . . High High
Specific Gravity, 15°C, . . . . . . . . . 0.86 0.863
Water Severability, ASTM D-1401,
Time to 40/37/3 at 82°C, minutes . . . . . . . 10 10
Foam Characteristics, ASTM D-892,
Seq. II, Tendency/Stability, ml/ml, . . . . . . . 0/0 0/0
Color, . . . . . . . . . . . Amber Amber

Meets or Exceeds the Requirements of:
DIN 51517-3, 2009-06, . . . . . . . . . X X
AGMA 9005-D94 - S, . . . . . . . . . X X

Note:

ΤΜ
Even though Petron Plus Formula 7 Heavy-Duty Synthetic (PAO)
Industrial WT Gear Oils are compatible with mineral oils based
products, mixing 59780 Series synthetic oils with mineral oils will
detract from their performance. We recommend that before chang-
ing a system to one of the 59780 Series synthetic products if you have
been using a mineral oil, it should be thoroughly cleaned out and
flushed to achieve the maximum performance benefits.

Use Petron Plus Formula 7 Wind Turbine Flushing Fluid & Oils
51836 or 51838 for the flushing fluid.
Distributed By:

December., 2013

Warranty: All products purchased from Petron Plus Global, Inc., (PPGI) are subject to terms and conditions set out in the contract, order acknowledgment and/or bill of lading. PPGI warrants only that
its product will meet those specifications designated as such herein or in other publications. All other information supplied by PPGI is considered accurate but is furnished upon the express condition
that the customer shall make its own assessment to determine the product’s suitability for a particular purpose. No warranty is expressed or implied regarding such other information, the data upon
which the same is based, or the results to be obtained from the use thereof; that any product shall be merchantable or fit for any particular purpose, or that the use of such other information or product
will not infringe any patent.
