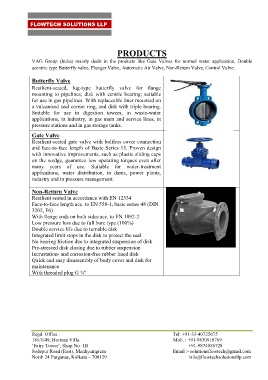

Page 29 - Catalogue_FSLLP

FLOWTECH SOLUTIONS LLP

PRODUCTS
VAG Group (India) mainly deals in the products like Gate Valves for normal water application, Double
acentric type Butterfly valve, Plunger Valve, Automatic Air Valve, Non-Return Valve, Control Valve.

Butterfly Valve
Resilient-seated, lug-type butterfly valve for flange
mounting to pipelines; disk with centric bearing; suitable
for use in gas pipelines. With replaceable liner mounted on
a vulcanised seal carrier ring, and disk with triple bearing.
Suitable for use in digestion towers, in waste-water
applications, in industry, in gas main and service lines, in
pressure stations and in gas storage tanks.

Gate Valve
Resilient-seated gate valve with boltless cover connection
and face-to-face length of Basic Series 15. Proven design
with innovative improvements, such as plastic sliding caps
on the wedge, guarantee low operating torques even after
many years of use. Suitable for water-treatment
applications, water distribution, in dams, power plants,
industry and in pressure management.

Non-Return Valve
Resilient seated in accordance with EN 12334
Face-to-face length acc. to EN 558-1, basic series 48 (DIN
3202, F6)
With flange ends on both sides acc. to EN 1092-2
Low pressure loss due to full bore type (100%)
Double service life due to turnable disk
Integrated limit stops in the disk to protect the seal
No bearing friction due to integrated suspension of disk
Pre-stressed disk closing due to rubber suspension
Incrustation- and corrosion-free rubber lined disk
Quick and easy disassembly of body cover and disk for
maintenance
With threaded plug G ¾"
