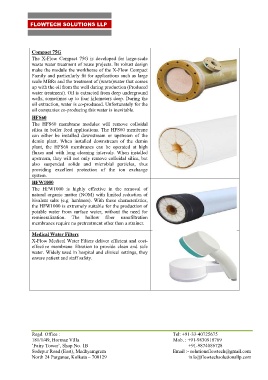

Page 38 - Catalogue_FSLLP

FLOWTECH SOLUTIONS LLP

Compact 75G
The X-Flow Compact 75G is developed for large-scale
waste water treatment of reuse projects. Its robust design
make the module the workhorse of the X-Flow Compact
Family and particularly fit for applications such as large
scale MBRs and the treatment of (waste)water that comes
up with the oil from the well during production (Produced
water treatment). Oil is extracted from deep underground
wells, sometimes up to four kilometers deep. During the
oil extraction, water is co-produced. Unfortunately for the
oil companies co-producing this water is inevitable.

HFS60
The HFS60 membrane modules will remove colloidal
silica in boiler feed applications. The HFS60 membrane
can either be installed downstream or upstream of the
demin plant. When installed downstream of the demin
plant, the HFS60 membranes can be operated at high
fluxes and with long cleaning intervals. When installed
upstream, they will not only remove colloidal silica, but
also suspended solids and microbial particles, thus
providing excellent protection of the ion exchange

system.
HFW1000
The HFW1000 is highly effective in the removal of
natural organic matter (NOM) with limited reduction of
bivalent salts (e.g. hardness). With these characteristics,
the HFW1000 is extremely suitable for the production of
potable water from surface water, without the need for
remineralization. The hollow fiber nanofiltration
membranes require no pretreatment other than a strainer.

Medical Water Filters
X-Flow Medical Water Filters deliver efficient and cost-
effective membrane filtration to provide clean and safe
water. Widely used in hospital and clinical settings, they
ensure patient and staff safety.
