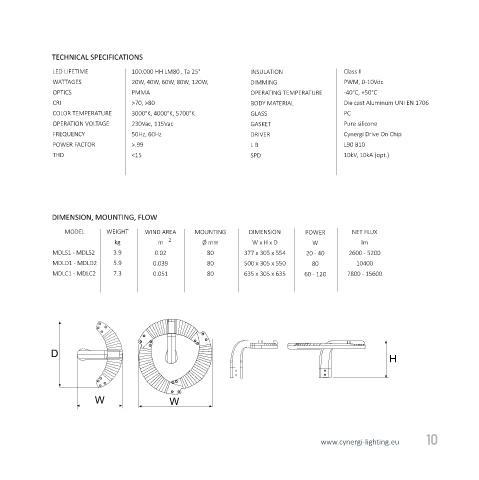

TECHNICAL SPECIFICATIONS
LED LIFETIME 100.000 HH LM80 , Ta 25° INSULATION Class II
WATTAGES 20W, 40W, 60W, 80W, 120W, DIMMING PWM, 0-10Vdc
OPTICS PMMA OPERATING TEMPERATURE -40°C, +50°C
CRI >70, >80 BODY MATERIAL Die cast Aluminum UNI EN 1706
COLOR TEMPERATURE 3000°K, 4000°K, 5700°K GLASS PC
OPERATION VOLTAGE 230Vac, 115Vac GASKET Pure silicone
FREQUENCY 50Hz, 60Hz DRIVER Cynergi Drive On Chip
POWER FACTOR >.99 L B L90 B10
THD <15 SPD 10kV, 10kA (opt.)
DIMENSION, MOUNTING, FLOW
MODEL WEIGHT WIND AREA MOUNTING DIMENSION POWER NET FLUX
kg m 2 Ø mm W x H x D W lm
MDLS1 - MDLS2 3.9 0.02 80 377 x 305 x 554 20 - 40 2600 - 5200
MDLD1 - MDLD2 5.9 0.039 80 500 x 305 x 550 80 10400
MDLC1 - MDLC2 7.3 0.051 80 635 x 305 x 635 60 - 120 7800 - 15600
D
H
W W
10
