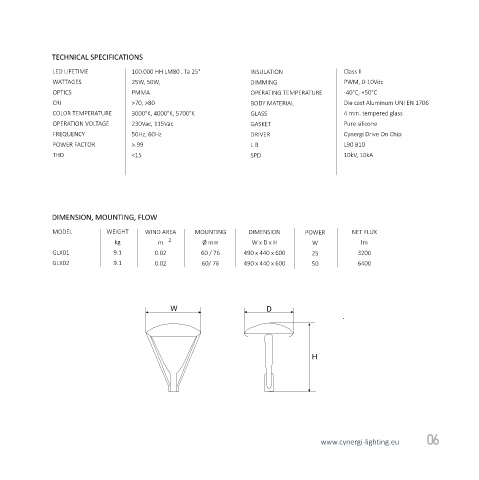

TECHNICAL SPECIFICATIONS
LED LIFETIME 100.000 HH LM80 , Ta 25° INSULATION Class II
WATTAGES 25W, 50W, DIMMING PWM, 0-10Vdc
OPTICS PMMA OPERATING TEMPERATURE -40°C, +50°C
CRI >70, >80 BODY MATERIAL Die cast Aluminum UNI EN 1706
COLOR TEMPERATURE 3000°K, 4000°K, 5700°K GLASS 4 mm. tempered glass
OPERATION VOLTAGE 230Vac, 115Vac GASKET Pure silicone
FREQUENCY 50Hz, 60Hz DRIVER Cynergi Drive On Chip
POWER FACTOR >.99 L B L90 B10
THD <15 SPD 10kV, 10kA
DIMENSION, MOUNTING, FLOW
MODEL WEIGHT WIND AREA MOUNTING DIMENSION POWER NET FLUX
kg m 2 Ø mm W x D x H W lm
GLX01 9.1 0.02 60 / 76 490 x 440 x 600 25 3200
GLX02 9.1 0.02 60/ 76 490 x 440 x 600 50 6400
W D
H
06
www.cynergi-lighting.eu
