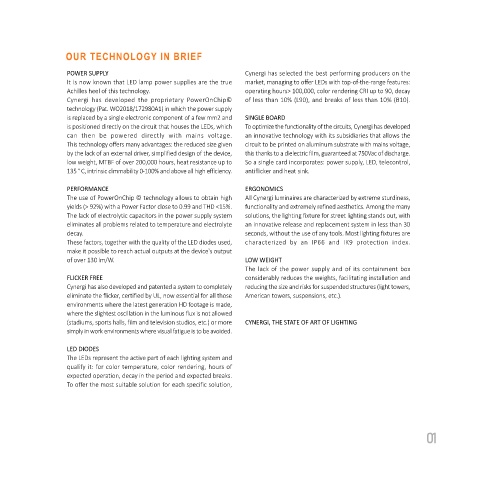

OUR TECHNOLOGY IN BRIEF

POWER SUPPLY Cynergi has selected the best performing producers on the
It is now known that LED lamp power supplies are the true market, managing to offer LEDs with top-of-the-range features:
Achilles heel of this technology. operating hours> 100,000, color rendering CRI up to 90, decay
Cynergi has developed the proprietary PowerOnChip© of less than 10% (L90), and breaks of less than 10% (B10).
technology (Pat. WO2018/172980A1) in which the power supply
is replaced by a single electronic component of a few mm2 and SINGLE BOARD
is positioned directly on the circuit that houses the LEDs, which To optimize the functionality of the circuits, Cynergi has developed
can then be powered directly with mains voltage. an innovative technology with its subsidiaries that allows the
This technology offers many advantages: the reduced size given circuit to be printed on aluminum substrate with mains voltage,
by the lack of an external driver, simplified design of the device, this thanks to a dielectric film, guaranteed at 750Vac of discharge.
low weight, MTBF of over 200,000 hours, heat resistance up to So a single card incorporates: power supply, LED, telecontrol,
135 ° C, intrinsic dimmability 0-100% and above all high efficiency. antiflicker and heat sink.
PERFORMANCE ERGONOMICS
The use of PowerOnChip © technology allows to obtain high All Cynergi luminaires are characterized by extreme sturdiness,
yields (> 92%) with a Power Factor close to 0.99 and THD <15%. functionality and extremely refined aesthetics. Among the many
The lack of electrolytic capacitors in the power supply system solutions, the lighting fixture for street lighting stands out, with
eliminates all problems related to temperature and electrolyte an innovative release and replacement system in less than 30
decay. seconds, without the use of any tools. Most lighting fixtures are
These factors, together with the quality of the LED diodes used, characterized by an IP66 and IK9 protection index.
make it possible to reach actual outputs at the device's output
of over 130 lm/W. LOW WEIGHT
The lack of the power supply and of its containment box
FLICKER FREE considerably reduces the weights, facilitating installation and
Cynergi has also developed and patented a system to completely reducing the size and risks for suspended structures (light towers,
eliminate the flicker, certified by UL, now essential for all those American towers, suspensions, etc.).
environments where the latest generation HD footage is made,
where the slightest oscillation in the luminous flux is not allowed
(stadiums, sports halls, film and television studios, etc.) or more CYNERGI, THE STATE OF ART OF LIGHTING
simply in work environments where visual fatigue is to be avoided.

LED DIODES
The LEDs represent the active part of each lighting system and
qualify it: for color temperature, color rendering, hours of
expected operation, decay in the period and expected breaks.
To offer the most suitable solution for each specific solution,

01
