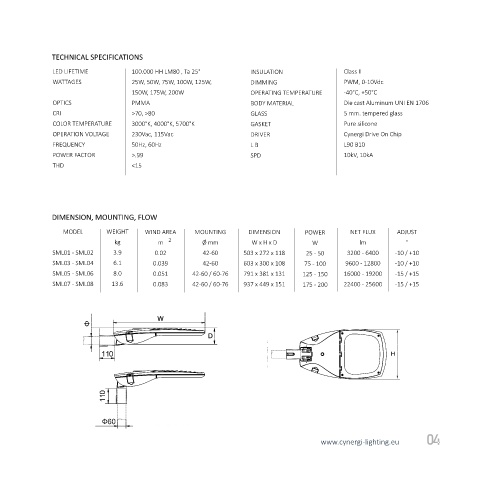

TECHNICAL SPECIFICATIONS
LED LIFETIME 100.000 HH LM80 , Ta 25° INSULATION Class II
WATTAGES 25W, 50W, 75W, 100W, 125W, DIMMING PWM, 0-10Vdc
150W, 175W, 200W OPERATING TEMPERATURE -40°C, +50°C
OPTICS PMMA BODY MATERIAL Die cast Aluminum UNI EN 1706
CRI >70, >80 GLASS 5 mm. tempered glass
COLOR TEMPERATURE 3000°K, 4000°K, 5700°K GASKET Pure silicone
OPERATION VOLTAGE 230Vac, 115Vac DRIVER Cynergi Drive On Chip
FREQUENCY 50Hz, 60Hz L B L90 B10
POWER FACTOR >.99 SPD 10kV, 10kA
THD <15

DIMENSION, MOUNTING, FLOW
MODEL WEIGHT WIND AREA MOUNTING DIMENSION POWER NET FLUX ADJUST
kg m 2 Ø mm W x H x D W lm °
SML01 - SML02 3.9 0.02 42-60 503 x 272 x 118 25 - 50 3200 - 6400 -10 / +10
SML03 - SML04 6.1 0.039 42-60 603 x 300 x 108 75 - 100 9600 - 12800 -10 / +10
SML05 - SML06 8.0 0.051 42-60 / 60-76 791 x 381 x 131 125 - 150 16000 - 19200 -15 / +15
SML07 - SML08 13.6 0.083 42-60 / 60-76 937 x 449 x 151 175 - 200 22400 - 25600 -15 / +15
