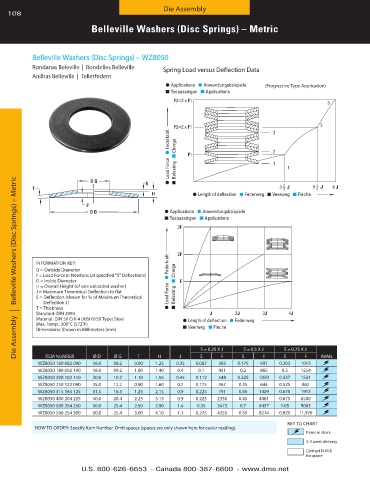

Page 108 - Die Casting Die Assemblies

Die Assembly
108

Belleville Washers (Disc Springs) – Metric

Belleville Washers (Disc Springs) – WZ8050
Rondanas Beleville | Rondelles Belleville Spring Load versus Deflection Data
Anilhas Belleville | Tellerfedern
Applications Anwendungsbeispeile Applications Anwendungsbeispeile (Progressive Type Application)
Toepassingen Applications Toepassingen Applications
3F F3 3 x F1 2 3

F2 2 x F1
Load Force Federkraft Belasting Charge 2F Load Force Federkraft Belasting Charge F1 3 1

2
F
1

Die Assembly | Belleville Washers (Disc Springs) – Metric
2
1
T J 2J Ø G 3J 4J S 3 J 5 J 6 J
3
3
Length of deflection Federweg H Length of deflection Federweg Veerweg Flèche
Veerweg Flèche
J
Ø D Applications Anwendungsbeispeile Applications Anwendungsbeispeile
Toepassingen Applications Toepassingen Applications
3F F3 3 x F1 3

INFORMATION KEY: 2F F2 2 x F1 3 2
D = Outside Diameter
F = Load Force in Newtons (at specified "S" Deflections)
G = Inside Diameter Load Force Federkraft F F1 2
H = Overall Height (of one unloaded washer) Belasting Charge Load Force Federkraft Belasting Charge
J = Maximum Theoretical Deflection to flat 1
S = Deflection (shown for % of Maximum Theoretical 1
Deflection J)
T = Thickness
1
2
Standard: DIN 2093 J 2J 3J 4J 3 J 5 J 6 J
3
3
Material: DIN 50 CrV 4 (AISI 6150 Type) Steel Length of deflection Federweg Length of deflection Federweg Veerweg Flèche
Max . Temp .: 300°C (572°F)
Dimensions: Shown in Millimeters (mm) Veerweg Flèche
S = 0 .25 X J S = 0 .5 X J S = 0 .75 X J
ITEM NUMBER Ø D Ø G T H J S F S F S F AVAIL
WZ8050 160 082 090 16 .0 08 .2 0 .90 1 .25 0 .35 0 .087 363 0 .175 697 0 .262 1013
WZ8050 180 092 100 18 .0 09 .2 1 .00 1 .40 0 .4 0 .1 451 0 .2 865 0 .3 1254
WZ8050 200 102 110 20 .0 10 .2 1 .10 1 .55 0 .45 0 .112 548 0 .225 1050 0 .337 1521
WZ8050 250 122 090 25 .0 12 .2 0 .90 1 .60 0 .7 0 .175 367 0 .35 644 0 .525 862
WZ8050 315 163 125 31 .5 16 .3 1 .25 2 .15 0 .9 0 .225 791 0 .45 1409 0 .675 1913
WZ8050 400 204 225 40 .0 20 .4 2 .25 3 .15 0 .9 0 .225 2336 0 .45 4481 0 .675 6500
WZ8050 500 254 250 50 .0 25 .4 2 .50 3 .90 1 .4 0 .35 3473 0 .7 6437 1 .05 9063
WZ8050 500 254 300 50 .0 25 .4 3 .00 4 .10 1 .1 0 .275 4255 0 .55 8214 0 .825 11,976

KEY TO CHART
HOW TO ORDER: Specify Item Number . Omit spaces (spaces are only shown here for easier reading) .
Items in stock
2-3 week delivery
Contact D-M-E
for quote
