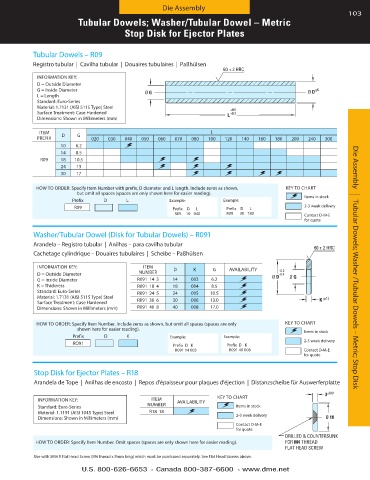

Page 103 - Die Casting Die Assemblies

Die Assembly
103
Tubular Dowels; Washer/Tubular Dowel – Metric 60 ± 2 HRC

Stop Disk for Ejector Plates

Ø G Ø D g6
Tubular Dowels – R09
Registro tubular | Cavilha tubular | Douaires tubulaires | Paßhülsen +0.5
60 ± 2 HRC L +0.3
INFORMATION KEY:
D = Outside Diameter
G = Inside Diameter Ø G Ø D g6
L = Length
Standard: Euro-Series
Material: 1 .7131 (AISI 5115 Type) Steel +0.5
Surface Treatment: Case Hardened L +0.3
Dimensions: Shown in Millimeters (mm)

ITEM D G L
PREFIX 020 030 040 050 060 070 080 100 120 140 160 180 200 240 300
10 6 .2
14 8 .5
R09 18 10 .5
24 13
30 17

HOW TO ORDER: Specify Item Number with prefix, D diameter and L length . Include zeros as shown, KEY TO CHART
but omit all spaces (spaces are only shown here for easier reading) .
Items in stock
Prefix D L Example: Example:
R09 Prefix D L Prefix D L 2-3 week delivery
R09 10 040 R09 30 180 Contact D-M-E
for quote
Washer/Tubular Dowel (Disk for Tubular Dowels) – R091

Arandela – Registro tubular | Anilhas – para cavilha tubular
60 ± 2 HRC
Cachetage cylindrique – Douaires tubulaires | Scheibe – Paßhülsen
INFORMATION KEY: ITEM D K G AVAILABILITY Die Assembly | Tubular Dowels; Washer /Tubular Dowels – Metric; Stop Disk
D = Outside Diameter NUMBER Ø D -0.2 Ø G
-0.4
G = Inside Diameter R091 14 3 14 003 6 .2
K = Thickness R091 18 4 18 004 8 .5
Standard: Euro-Series R091 24 5 24 005 10 .5 60 ± 2 HRC
Material: 1 .7131 (AISI 5115 Type) Steel js12
Surface Treatment: Case Hardened R091 30 6 30 006 13 .0 K
Dimensions: Shown in Millimeters (mm) R091 40 8 40 008 17 .0
-0.2
-0.4
Ø G
Ø D
HOW TO ORDER: Specify Item Number . Include zeros as shown, but omit all spaces (spaces are only KEY TO CHART
shown here for easier reading) . Items in stock
Prefix D K Example: Example:
RO91 Prefix D K K Prefix D K 2-3 week delivery
js12
R091 14 003 R091 40 008 Contact D-M-E
for quote
Stop Disk for Ejector Plates – R18
Arandela de Tope | Anilhas de encosto | Repos d'épaisseur pour plaques d'éjection | Distanzscheibe für Auswerferplatte

3 ±0.01
INFORMATION KEY: ITEM AVAILABILITY KEY TO CHART
Standard: Euro-Series NUMBER Items in stock
Material: 1 .1191 (AISI 1045 Type) Steel R18 18 2-3 week delivery
Dimensions: Shown in Millimeters (mm) Ø 18
Contact D-M-E
for quote
DRILLED & COUNTERSUNK
HOW TO ORDER: Specify Item Number . Omit spaces (spaces are only shown here for easier reading) . FOR M4 THREAD
FLAT HEAD SCREW
Use with SM4 8 Flat Head Screw (M4 thread x 8mm long) which must be purchased separately . See Flat Head Screws above .
U.S. 800-626-6653 n Canada 800-387-6600 n www.dme.net
