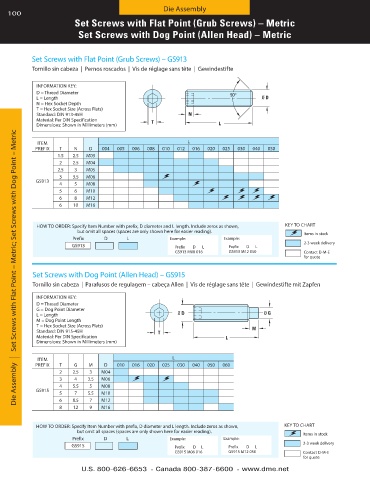

Page 100 - Die Casting Die Assemblies

Ø D
T
Die Assembly L M Ø G
100
Set Screws with Flat Point (Grub Screws) – Metric
Set Screws with Dog Point (Allen Head) – Metric

Set Screws with Flat Point (Grub Screws) – GS913
Tornillo sin cabeza | Pernos roscados | Vis de réglage sans tête | Gewindestifte

INFORMATION KEY:
D = Thread Diameter 90 °
L = Length Ø D
N = Hex Socket Depth
T = Hex Socket Size (Across Flats)
Standard: DIN 913-45H N
Material: Per DIN Specification T
Dimensions: Shown in Millimeters (mm) L
Die Assembly | Set Screws with Flat Point – Metric; Set Screws with Dog Point – Metric
ITEM L
PREFIX T N D 004 005 006 008 010 012 016 020 025 030 040 050
1 .5 2 .5 M03
2 2 .5 M04
2 .5 3 M05
3 3 .5 M06
GS913 4 5 M08
5 6 M10
6 8 M12
6 10 M16

HOW TO ORDER: Specify Item Number with prefix, D diameter and L length . Include zeros as shown, KEY TO CHART
but omit all spaces (spaces are only shown here for easier reading) .
Items in stock
Prefix D L Example: Example:
GS913 Prefix D L Prefix D L 2-3 week delivery
GS913 M08 016 GS913 M12 050 Contact D-M-E
for quote

Set Screws with Dog Point (Allen Head) – GS915
Tornillo sin cabeza | Parafusos de regulagem – cabeça Allen | Vis de réglage sans tête | Gewindestifte mit Zapfen

INFORMATION KEY:
D = Thread Diameter
G = Dog Point Diameter
L = Length Ø D Ø G
M = Dog Point Length
T = Hex Socket Size (Across Flats)
Standard: DIN 915-45H T M
Material: Per DIN Specification L
Dimensions: Shown in Millimeters (mm)

ITEM L
PREFIX T G M D 010 016 020 025 030 040 050 060
2 2 .5 3 M04
3 4 3 .5 M06
4 5 .5 5 M08
GS915
5 7 5 .5 M10
6 8 .5 7 M12
8 12 9 M16

HOW TO ORDER: Specify Item Number with prefix, D diameter and L length . Include zeros as shown, KEY TO CHART
but omit all spaces (spaces are only shown here for easier reading) . Items in stock
Prefix D L Example: Example:
GS915 Prefix D L Prefix D L 2-3 week delivery
GS915 M06 016 GS915 M12 050 Contact D-M-E
for quote
U.S. 800-626-6653 n Canada 800-387-6600 n www.dme.net

90 °
Ø D

N
T L
