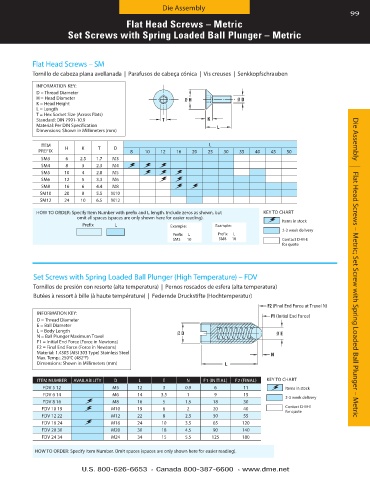

Page 99 - Die Casting Die Assemblies

Die Assembly
99
Flat Head Screws – Metric
Set Screws with Spring Loaded Ball Plunger – Metric

Flat Head Screws – SM
Tornillo de cabeza plana avellanada | Parafusos de cabeça cónica | Vis creuses | Senkkopfschrauben

INFORMATION KEY:
D = Thread Diameter F2 (Final End Force at Travel N)
H = Head Diameter Ø H Ø D F1 (Initial End Force)
K = Head Height
L = Length
T = Hex Socket Size (Across Flats)
Standard: DIN 7991-10 .9 T Ø D K Ø E
Material: Per DIN Specification L
Dimensions: Shown in Millimeters (mm)
N
ITEM L
PREFIX H K T D 8 10 12 16 20 25 30 L 35 40 45 50
SM3 6 2 .5 1 .7 M3
SM4 8 3 2 .3 M4
SM5 10 4 2 .8 M5
SM6 12 5 3 .3 M6
SM8 16 6 4 .4 M8
SM10 20 8 5 .5 M10
SM12 24 10 6 .5 M12
HOW TO ORDER: Specify Item Number with prefix and L length . Include zeros as shown, but KEY TO CHART
omit all spaces (spaces are only shown here for easier reading) . Items in stock
Prefix L Example: Example:
2-3 week delivery
Prefix L Prefix L
SM3 10 SM8 16 Contact D-M-E
for quote

Set Screws with Spring Loaded Ball Plunger (High Temperature) – FDV Die Assembly | Flat Head Screws – Metric; Set Screw with Spring Loaded Ball Plunger – Metric
Tornillos de presión con resorte (alta temperatura) | Pernos roscados de esfera (alta temperatura)
Butées à ressort à bille (à haute température) | Federnde Druckstifte (Hochtemperatur)
F2 (Final End Force at Travel N)
INFORMATION KEY: F1 (Initial End Force)
D = Thread Diameter
E = Ball Diameter
L = Body Length Ø D Ø E
N = Ball Plunger Maximum Travel
F1 = Initial End Force (Force in Newtons)
F2 = Final End Force (Force in Newtons)
Material: 1 .4305 (AISI 303 Type) Stainless Steel N
Max . Temp .: 250°C (482°F)
Dimensions: Shown in Millimeters (mm) L

ITEM NUMBER AVAILABILITY D L E N F1 (INITIAL) F2 (FINAL) KEY TO CHART
FDV 5 12 M5 12 3 0 .9 6 11 Items in stock
FDV 6 14 M6 14 3 .5 1 9 15 2-3 week delivery
FDV 8 16 M8 16 5 1 .5 18 30
FDV 10 19 M10 19 6 2 20 40 Contact D-M-E
for quote
FDV 12 22 M12 22 8 2 .5 30 55
FDV 16 24 M16 24 10 3 .5 65 120
FDV 20 30 M20 30 18 4 .5 90 140
FDV 24 34 M24 34 15 5 .5 125 180
HOW TO ORDER: Specify Item Number . Omit spaces (spaces are only shown here for easier reading) .

U.S. 800-626-6653 n Canada 800-387-6600 n www.dme.net
