Die Assembly
96

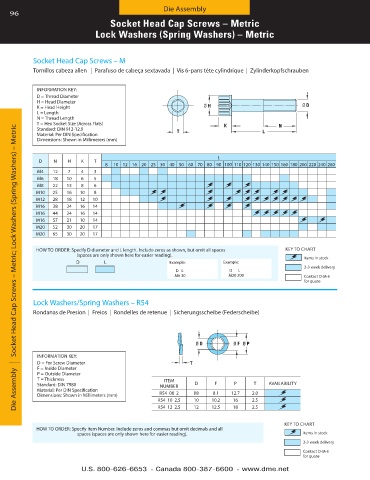

Socket Head Cap Screws – Metric
Lock Washers (Spring Washers) – Metric

Socket Head Cap Screws – M
Tornillos cabeza allen | Parafuso de cabeça sextavada | Vis 6-pans téte cylindrique | Zylinderkopfschrauben

INFORMATION KEY:
D = Thread Diameter
H = Head Diameter
K = Head Height Ø H Ø D
L = Length
N = Thread Length
T = Hex Socket Size (Across Flats) K N
Die Assembly | Socket Head Cap Screws – Metric; Lock Washers (Spring Washers) – Metric
Standard: DIN 912-12 .9 T L
Material: Per DIN Specification
Dimensions: Shown in Millimeters (mm)

L
D N H K T
8 10 12 16 20 25 30 40 50 60 70 80 90 100 110 120 130 140 150 160 180 200 220 240 260
M4 12 7 4 3
M6 18 10 6 5
M8 22 13 8 6
M10 25 16 10 8
M12 28 18 12 10
M16 38 24 16 14
M16 44 24 16 14
M16 57 21 10 14
M20 52 30 20 17
M20 65 30 20 17

HOW TO ORDER: Specify D diameter and L length . Include zeros as shown, but omit all spaces KEY TO CHART
(spaces are only shown here for easier reading) . Items in stock
D L Example: Example:
D L D L 2-3 week delivery
M6 30 M20 200 Contact D-M-E
for quote

Lock Washers/Spring Washers – R54 1100-1200 N/mm 2 (Ref. Only ~36±2 HRC)

Rondanas de Presion | Freios | Rondelles de retenue | Sicherungsscheibe (Federscheibe)
Ra0.8

Ø H Ø D h8 Ø F
Ø D Ø F Ø P

INFORMATION KEY: T J N
D = For Screw Diameter K T +0.1
0
F = Inside Diameter S
P = Outside Diameter
T = Thickness ITEM
Standard: DIN 7980 NUMBER D F P T AVAILABILITY
Material: Per DIN Specification
Dimensions: Shown in Millimeters (mm) R54 08 2 08 8 .1 12 .7 2 .0
R54 10 2,5 10 10 .2 16 2 .5
R54 12 2,5 12 12 .5 18 2 .5
ITEM D F P T AVAILABILITY
NUMBER
R54 08 2 08 8.1 12.7 2.0 KEY TO CHART
HOW TO ORDER: Specify Item Number . Include zeros and commas but omit decimals and all
R5410 2,5
16
10.2
10
spaces (spaces are only shown here for easier reading) . 2.5 Items in stock
R5412 2,5 12 12.5 18 2.5 2-3 week delivery
Contact D-M-E
for quote
