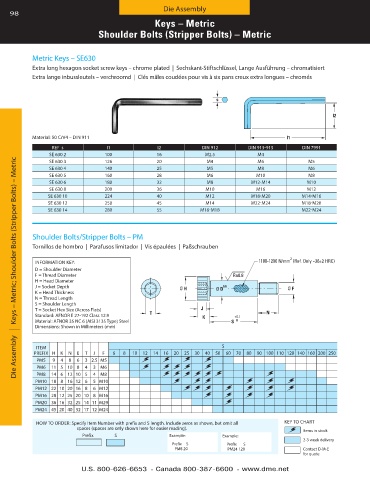

Page 98 - Die Casting Die Assemblies

Die Assembly
98
Keys – Metric
Shoulder Bolts (Stripper Bolts) – Metric

Metric Keys – SE630 Ø H Ø D
Extra long hexagon socket screw keys – chrome plated | Sechskant-Stiftschlüssel, Lange Ausführung – chromatisiert
Extra lange inbussleutels – verchroomd | Clés mâles coudées pour vis à six pans creux extra longues – chromés
K N
T L

s

I2

Material: 50 CrV4 – DIN 911 I1
REF s I1 I2 DIN 912 DIN 913-915 DIN 7991
SE 630 2 100 16 M2 .5 M4
Die Assembly | Keys – Metric; Shoulder Bolts (Stripper Bolts) – Metric
SE 630 3 126 20 M4 M6 M5
SE 630 4 140 25 M5 M8 M6
SE 630 5 160 28 M6 M10 M8
SE 630 6 180 32 M8 M12-M14 M10
SE 630 8 200 36 M10 M16 M12
SE 630 10 224 40 M12 M18-M20 M14-M16
SE 630 12 250 45 M14 M22-M24 M18-M20
SE 630 14 280 55 M16-M18 M22-M24

Shoulder Bolts/Stripper Bolts – PM
Tornillos de hombro | Parafusos limitador | Vis épaulées | Paßschrauben

INFORMATION KEY: 1100-1200 N/mm 2 (Ref. Only ~36±2 HRC)
D = Shoulder Diameter
F = Thread Diameter Ra0.8
H = Head Diameter
J = Socket Depth Ø H Ø D h8 Ø F
K = Head Thickness
N = Thread Length
S = Shoulder Length
T = Socket Hex Size (Across Flats) T J N
Standard: AFNOR E 27-192 Class 12 .9 K +0.1
Material: AFNOR 35 NC 6 (AISI 3135 Type) Steel S 0
Dimensions: Shown in Millimeters (mm)

ITEM S
PREFIX H K N E T J F 6 8 10 12 14 16 20 25 30 40 50 60 70 80 90 100 110 120 140 160 200 250
PM5 9 4 8 6 3 2 .5 M5
PM6 11 5 10 8 4 3 M6
PM8 14 6 12 10 5 4 M8
PM10 18 8 16 12 6 5 M10
PM12 22 10 20 16 8 6 M12
PM16 28 12 25 20 10 8 M16
PM20 36 16 32 25 14 11 M29
PM24 45 20 40 32 17 12 M24

HOW TO ORDER: Specify Item Number with prefix and S length . Include zeros as shown, but omit all KEY TO CHART
spaces (spaces are only shown here for easier reading) . Items in stock
Prefix S Example: Example:
Prefix S Prefix S 2-3 week delivery
PM8 20 PM24 120 Contact D-M-E
for quote

U.S. 800-626-6653 n Canada 800-387-6600 n www.dme.net
