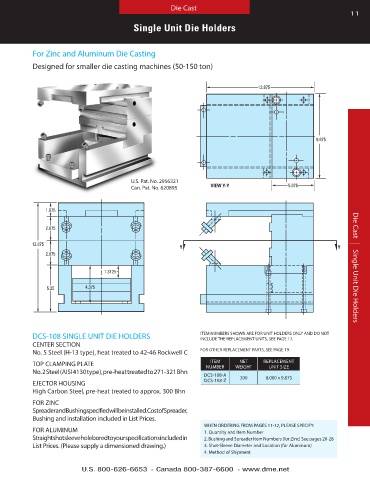

Page 11 - Die Casting Die Assemblies

Die Cast
11
Single Unit Die Holders

For Zinc and Aluminum Die Casting

Designed for smaller die casting machines (50-150 ton)

13.875

9.875

U .S . Pat . No . 2956321
Can . Pat . No . 620895 VIEW Y-Y 5.875

1.875

2.875

12.875 Y Y
2.875

1.3125 Die Cast | Single Unit Die Holders

5.25 4.375

DCS-108 SINGLE UNIT DIE HOLDERS ITEM NUMBERS SHOWN ARE FOR UNIT HOLDERS ONLY AND DO NOT
INCLUDE THE REPLACEMENT UNITS, SEE PAGE 17 .
CENTER SECTION
No . 5 Steel (H-13 type), heat treated to 42-46 Rockwell C FOR OTHER REPLACEMENT PARTS, SEE PAGE 19 .
NET
ITEM
TOP CLAMPING PLATE NUMBER WEIGHT REPLACEMENT
UNIT SIZE
No . 2 Steel (AISI 4130 type), pre-heat treated to 271-321 Bhn
DCS-108-A 300 8 .000 x 9 .875
EJECTOR HOUSING DCS-108-Z
High Carbon Steel, pre-heat treated to approx . 300 Bhn
FOR ZINC
Spreader and Bushing specified will be installed . Cost of Spreader,
Bushing and installation included in List Prices .
WHEN ORDERING FROM PAGES 11-12, PLEASE SPECIFY:
FOR ALUMINUM 1 . Quantity and Item Number
Straight shot sleeve hole bored to your specifications included in 2 . Bushing and Spreader Item Numbers (for Zinc) See pages 20-28
List Prices . (Please supply a dimensioned drawing .) 3 . Shot-Sleeve Diameter and Location (for Aluminum)
4 . Method of Shipment
