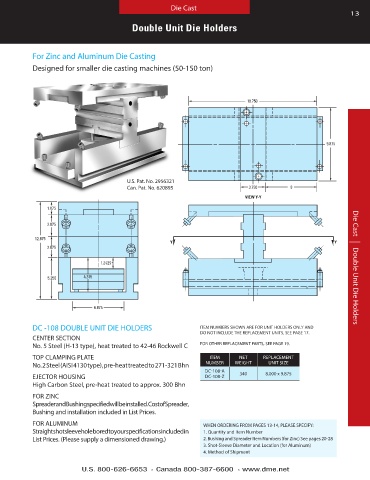

Page 13 - Die Casting Die Assemblies

Die Cast
13
Double Unit Die Holders

For Zinc and Aluminum Die Casting

Designed for smaller die casting machines (50-150 ton)

19.750

9.875

U .S . Pat . No . 2956321
Can . Pat . No . 620895 3.750 8
VIEW Y-Y
1.875

2.875

12.875
Y Y
2.875

1.3125 Die Cast | Double Unit Die Holders

5.250 4.375

6.875

DC -108 DOUBLE UNIT DIE HOLDERS ITEM NUMBERS SHOWN ARE FOR UNIT HOLDERS ONLY AND
DO NOT INCLUDE THE REPLACEMENT UNITS, SEE PAGE 17 .
CENTER SECTION
No . 5 Steel (H-13 type), heat treated to 42-46 Rockwell C FOR OTHER REPLACEMENT PARTS, SEE PAGE 19 .

TOP CLAMPING PLATE ITEM NET REPLACEMENT
No . 2 Steel (AISI 4130 type), pre-heat treated to 271-321 Bhn NUMBER WEIGHT UNIT SIZE
DC-108-A
EJECTOR HOUSING DC-108-Z 340 8 .000 x 9 .875
High Carbon Steel, pre-heat treated to approx . 300 Bhn

FOR ZINC
Spreader and Bushing specified will be installed . Cost of Spreader,
Bushing and installation included in List Prices .
FOR ALUMINUM WHEN ORDERING FROM PAGES 13-14, PLEASE SPECIFY:
Straight shot sleeve hole bored to your specifications included in 1 . Quantity and Item Number
List Prices . (Please supply a dimensioned drawing .) 2 . Bushing and Spreader Item Numbers (for Zinc) See pages 20-28
3 . Shot-Sleeve Diameter and Location (for Aluminum)
4 . Method of Shipment

U.S. 800-626-6653 n Canada 800-387-6600 n www.dme.net
