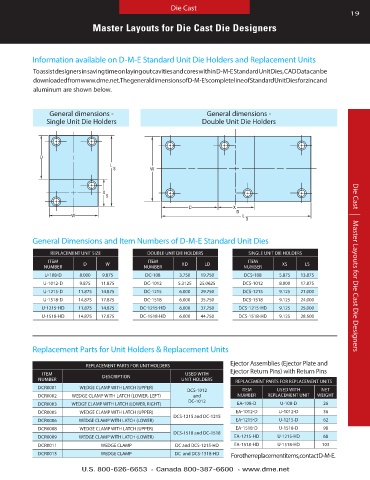

Page 19 - Die Casting Die Assemblies

Die Cast
19
Master Layouts for Die Cast Die Designers

Information available on D-M-E Standard Unit Die Holders and Replacement Units

To assist designers in saving time on laying out cavities and cores within D-M-E Standard Unit Dies, CAD Data can be
downloaded from www .dme .net . The general dimensions of D-M-E’s complete line of Standard Unit Dies for zinc and
aluminum are shown below .

General dimensions - General dimensions -
Single Unit Die Holders Double Unit Die Holders

D
D
L
L S
S W
W
X
X S
S
D X
W D X D
W D L
L D
D

General Dimensions and Item Numbers of D-M-E Standard Unit Dies

REPLACEMENT UNIT SIZE DOUBLE UNIT DIE HOLDERS SINGLE UNIT DIE HOLDERS
ITEM ITEM ITEM
NUMBER D W NUMBER XD LD NUMBER XS LS Die Cast | Master Layouts for Die Cast Die Designers
U-108-D 8 .000 9 .875 DC-108 3 .750 19 .750 DCS-108 5 .875 13 .875
U-1012-D 9 .875 11 .875 DC-1012 5 .3125 25 .0625 DCS-1012 8 .000 17 .875
U-1215-D 11 .875 14 .875 DC-1215 6 .000 29 .750 DCS-1215 9 .125 21 .000
U-1518-D 14 .875 17 .875 DC-1518 6 .000 35 .750 DCS-1518 9 .125 24 .000
U-1215-HD 11 .875 14 .875 DC-1215-HD 6 .000 37 .750 DCS-1215-HD 9 .125 25 .000
U-1518-HD 14 .875 17 .875 DC-1518-HD 6 .000 44 .750 DCS-1518-HD 9 .125 28 .500

Replacement Parts for Unit Holders & Replacement Units

REPLACEMENT PARTS FOR UNIT HOLDERS Ejector Assemblies (Ejector Plate and
ITEM DESCRIPTION USED WITH Ejector Return Pins) with Return Pins
NUMBER UNIT HOLDERS REPLACEMENT PARTS FOR REPLACEMENT UNITS
DCR0001 WEDGE CLAMP WITH LATCH (UPPER)
DCS-1012 ITEM USED WITH NET
DCR0002 WEDGE CLAMP WITH LATCH (LOWER, LEFT) and NUMBER REPLACEMENT UNIT WEIGHT
DC-1012
DCR0003 WEDGE CLAMP WITH LATCH (LOWER, RIGHT) EA-108-D U-108-D 26
DCR0005 WEDGE CLAMP WITH LATCH (UPPER) EA-1012-D U-1012-D 36
DCS-1215 and DC-1215
DCR0006 WEDGE CLAMP WITH LATCH (LOWER) EA-1215-D U-1215-D 62
DCR0008 WEDGE CLAMP WITH LATCH (UPPER) EA-1518-D U-1518-D 98
DCS-1518 and DC-1518
DCR0009 WEDGE CLAMP WITH LATCH (LOWER) EA-1215-HD U-1215-HD 68
DCR0011 WEDGE CLAMP DC and DCS-1215-HD EA-1518-HD U-1518-HD 103
DCR0013 WEDGE CLAMP DC and DCS-1518-HD For other replacement items, contact D-M-E .
