24

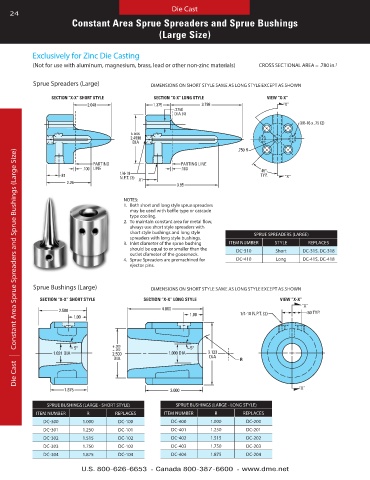

Constant Area Sprue Spreaders and Sprue Bushings
(Large Size)

Exclusively for Zinc Die Casting

(Not for use with aluminum, magnesium, brass, lead or other non-zinc materials) CROSS SECTIONAL AREA = .780 in . 2

SPRUE SPREADERS (LARGE)
Sprue Spreaders (Large) DIMENSIONS ON SHORT STYLE SAME AS LONG STYLE EXCEPT AS SHOWN
DIMENSIONS ON SHORT STYLE SAME AS LONG STYLE EXCEPT AS SHOWN
SECTION “X-X” SHORT STYLE SECTION “X-X” LONG STYLE VIEW “X-X”
2.048 1.375 3.798 “X”
.3750
DIA (4)
3/8-16 x .75 (2)
.0005
2.4990
DIA
.750 R
Die Cast | Constant Area Sprue Spreaders and Sprue Bushings (Large Size)
PARTING PARTING LINE
.100 LINE .100 45º
.81 1/4-18 TYP. “X”
N.P.T. (3) .81
2.26 3.95

NOTES:
1 . Both short and long style sprue spreaders
may be used with baffle type or cascade
type cooling .
2 . To maintain constant area for metal flow,
always use short style spreaders with
short style bushings and long style SPRUE SPREADERS (LARGE)
spreaders with long style bushings .
3 . Inlet diameter of the sprue bushing ITEM NUMBER STYLE REPLACES
should be equal to or smaller than the DC-310 Short DC-315, DC-318
outlet diameter of the gooseneck .
4 . Sprue Spreaders are premachined for DC-410 Long DC-415, DC-418
ejector pins .

SPRUE BUSHINGS (LARGE)
Sprue Bushings (Large)
DIMENSIONS ON SHORT STYLE SAME AS LONG STYLE EXCEPT AS SHOWN
DIMENSIONS ON SHORT STYLE SAME AS LONG STYLE EXCEPT AS SHOWN
SECTION “X-X” SHORT STYLE SECTION “X-X” LONG STYLE VIEW “X-X”
“X”
2.500 4.000 1/4-18 N.P.T. (2) .50 TYP.
1.00 1.00

5º .000 5º
.002
1.031 DIA 2.500 1.000 DIA 3.123
DIA DIA R

1.875 3.000 “X”

SPRUE BUSHINGS (LARGE - SHORT STYLE) SPRUE BUSHINGS (LARGE - LONG STYLE)
ITEM NUMBER R REPLACES ITEM NUMBER R REPLACES
DC-300 1 .000 DC-100 DC-400 1 .000 DC-200
DC-301 1 .250 DC-101 DC-401 1 .250 DC-201
DC-302 1 .515 DC-102 DC-402 1 .515 DC-202
DC-303 1 .750 DC-103 DC-403 1 .750 DC-203
DC-304 1 .875 DC-104 DC-404 1 .875 DC-204
