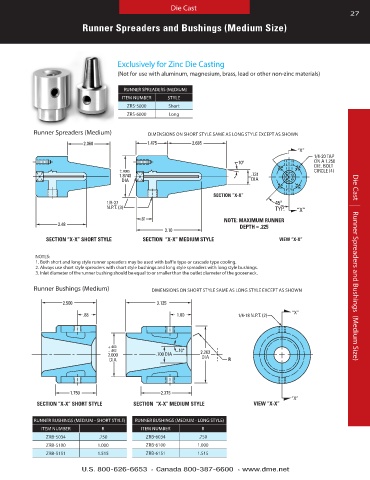

Page 27 - Die Casting Die Assemblies

Die Cast
27
Runner Spreaders and Bushings (Medium Size)

Exclusively for Zinc Die Casting
(Not for use with aluminum, magnesium, brass, lead or other non-zinc materials)

RUNNER SPREADERS (MEDIUM)
ITEM NUMBER STYLE
ZRS-5000 Short
ZRS-6000 Long

Runner Spreaders (Medium) DIMENSIONS ON SHORT STYLE SAME AS LONG STYLE EXCEPT AS SHOWN
RUNNER SPREADERS (MEDIUM)
DIMENSIONS ON SHORT STYLE SAME AS LONG STYLE EXCEPT AS SHOWN
2.060 1.475 2.685
“X”
1/4-20 TAP
10º ON A 1.250
DIE. BOLT
.0005 CIRCLE (4)
1.8740 .731
DIA DIA

SECTION “X-X”
1/8-27 45º
N.P.T. (3) TYP. “X”
.81 NOTE: MAXIMUM RUNNER
2.48 DEPTH = .225
3.10
SECTION “X-X” SHORT STYLE SECTION “X-X” MEDIUM STYLE VIEW “X-X”

NOTES:
1 . Both short and long style runner spreaders may be used with baffle type or cascade type cooling .
2 . Always use short style spreaders with short style bushings and long style spreaders with long style bushings . Die Cast | Runner Spreaders and Bushings (Medium Size)
3 . Inlet diameter of the runner bushing should be equal to or smaller than the outlet diameter of the gooseneck .

Runner Bushings (Medium) DIMENSIONS ON SHORT STYLE SAME AS LONG STYLE EXCEPT AS SHOWN
RUNNER BUSHINGS (MEDIUM) DIMENSIONS ON SHORT STYLE SAME AS LONG STYLE EXCEPT AS SHOWN
2.500 3.125
.88 1.00 1/4-18 N.P.T. (2) “X”

.000
.002 10º 2.263
2.000 .700 DIA DIA
DIA R

1.750 2.375
“X”
SECTION “X-X” SHORT STYLE SECTION “X-X” MEDIUM STYLE VIEW “X-X”

RUNNER BUSHINGS (MEDIUM - SHORT STYLE) RUNNER BUSHINGS (MEDIUM - LONG STYLE)
ITEM NUMBER R ITEM NUMBER R
ZRB-5034 .750 ZRB-6034 .750
ZRB-5100 1 .000 ZRB-6100 1 .000
ZRB-5151 1 .515 ZRB-6151 1 .515

U.S. 800-626-6653 n Canada 800-387-6600 n www.dme.net
