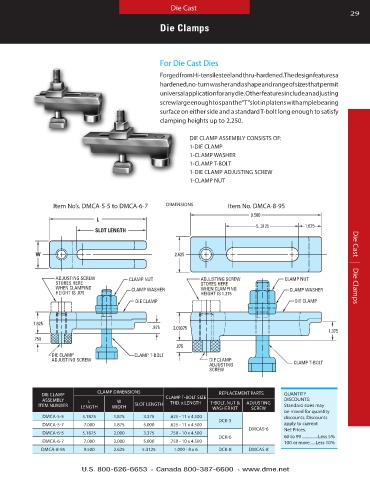

Page 29 - Die Casting Die Assemblies

Die Cast
29
Die Clamps

For Die Cast Dies

Forged from Hi-tensile steel and thru-hardened . The design features a
hardened, no-turn washer and a shape and range of sizes that permit
universal application for any die . Other features include an adjusting
screw large enough to span the “T” slot in platens with ample bearing
surface on either side and a standard T-bolt long enough to satisfy
clamping heights up to 2 .250 .

DIE CLAMP ASSEMBLY CONSISTS OF:
1-DIE CLAMP
1-CLAMP WASHER
1-CLAMP T-BOLT
1-DIE CLAMP ADJUSTING SCREW
1-CLAMP NUT

Item No’s . DMCA-5-5 to DMCA-6-7 DIMENSIONS Item No . DMCA-8-95
CAT. NO. DMCA-8-95
DlMENSIONS
CAT. NO'S. DMCA-5-5 TO DMCA-6-7
9.500
L
5..3125 1.625
SLOT LENGTH

W 2.625

ADJUSTING SCREW CLAMP NUT ADJUSTING SCREW CLAMP NUT Die Cast | Die Clamps
STORES HERE STORES HERE
WHEN CLAMPING CLAMP WASHER WHEN CLAMPING CLAMP WASHER
HEIGHT IS .875 HEIGHT IS 1.375
DIE CLAMP DIE CLAMP

1.625
.875 2.09375
1.375
.750
.875
DIE CLAMP CLAMP T-BOLT
ADJUSTING SCREW DIE CLAMP CLAMP T-BOLT
ADJUSTING
SCREW

CLAMP DIMENSIONS
DIE CLAMP REPLACEMENT PARTS QUANTITY
ASSEMBLY L W CLAMP T-BOLT SIZE DISCOUNTS:
ITEM NUMBER LENGTH WIDTH SLOT LENGTH THD . x LENGTH T-BOLT, NUT & ADJUSTING Standard sizes may
WASHER KIT
SCREW
be mixed for quantity
DMCA-5-5 5 .1875 1 .875 3 .375 .625 - 11 x 4 .500 discounts . Discounts
DCK-5
DMCA-5-7 7 .000 1 .875 5 .000 .625 - 11 x 4 .500 apply to current
DMCAS-6 Net Prices .
DMCA-6-5 5 .1875 2 .000 3 .375 .750 - 10 x 4 .500
DCK-6 60 to 99 . . . . . . . . . . . . . . .Less 5%
DMCA-6-7 7 .000 2 .000 5 .000 .750 - 10 x 4 .500 100 or more . . . . .Less 10%
DMCA-8-95 9 .500 2 .625 5 .3125 1 .000 - 8 x 6 DCK-8 DMCAS-8
