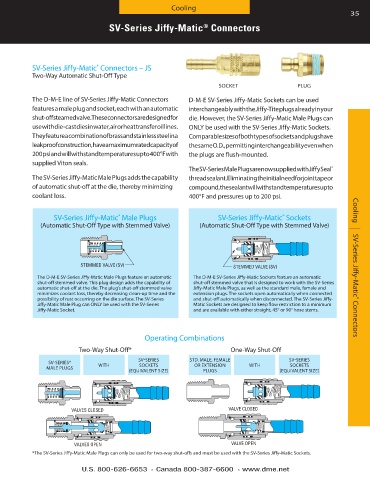

Page 35 - Die Casting Die Assemblies

Cooling
35
SV-Series Jiffy-Matic Connectors
®

SV-Series Jiffy-Matic Connectors – JS
®
Two-Way Automatic Shut-Off Type
SOCKET PLUG

The D-M-E line of SV-Series Jiffy-Matic Connectors D-M-E SV-Series Jiffy-Matic Sockets can be used
features a male plug and socket, each with an automatic interchangeably with the Jiffy-Tite plugs already in your
shut-off steamed valve . These connectors are designed for die . However, the SV-Series Jiffy-Matic Male Plugs can
use with die-cast dies in water, air or heat transfer oil lines . ONLY be used with the SV-Series Jiffy-Matic Sockets .
They feature a combination of brass and stainless steel in a Comparable sizes of both types of sockets and plugs have
leakproof construction, have a maximum rated capacity of the same O .D ., permitting interchangeability even when
200 psi and will withstand temperatures up to 400°F with the plugs are flush-mounted .
supplied Viton seals .
The SV-Series Male Plugs are now supplied with Jiffy Seal
®
The SV-Series Jiffy-Matic Male Plugs adds the capability thread sealant . Eliminating the initial need for joint tape or
of automatic shut-off at the die, thereby minimizing compound, the sealant will withstand temperatures up to
coolant loss . 400°F and pressures up to 200 psi .

SV-Series Jiffy-Matic Male Plugs SV-Series Jiffy-Matic Sockets
®
®
(Automatic Shut-Off Type with Stemmed Valve) (Automatic Shut-Off Type with Stemmed Valve)

STEMMED VALVE (SV) STEMMED VALVE (SV) STEMMED VALVE (SV) STEMMED VALVE (SV) Cooling | SV-Series Jiffy-Matic ® Connectors
The D-M-E SV-Series Jiffy-Matic Male Plugs feature an automatic The D-M-E SV-Series Jiffy-Matic Sockets feature an automatic
shut-off stemmed valve . This plug design adds the capability of shut-off stemmed valve that is designed to work with the SV-Series
automatic shut-off at the die . The plug’s shut-off stemmed valve Jiffy-Matic Male Plugs, as well as the standard male, female and
minimizes coolant loss, thereby decreasing clean-up time and the extension plugs . The sockets open automatically when connected
possibility of rust occurring on the die surface . The SV-Series and shut-off automatically when disconnected . The SV-Series Jiffy-
Jiffy-Matic Male Plug can ONLY be used with the SV-Series Matic Sockets are designed to keep flow restriction to a minimum
Jiffy-Matic Socket . and are available with either straight, 45° or 90° hose stems .

Operating Combinations
Two-Way Shut-Off* One-Way Shut-Off

SV-SERIES STD . MALE, FEMALE SV-SERIES
SV-SERIES*
MALE PLUGS WITH SOCKETS OR EXTENSION WITH SOCKETS
(EQUIVALENT SIZE) PLUGS (EQUIVALENT SIZE)

VALVES CLOSED VALVE CLOSED

VALVES OPEN VALVE OPEN
*The SV-Series Jiffy-Matic Male Plugs can only be used for two-way shut-offs and must be used with the SV-Series Jiffy-Matic Sockets .
