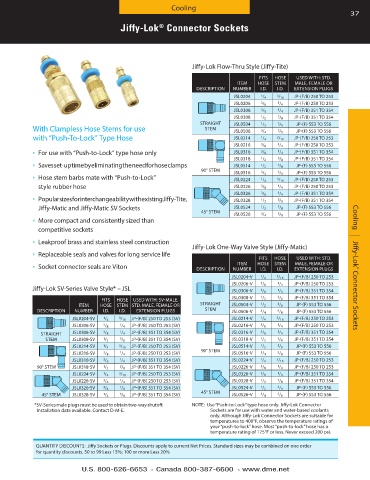

Page 37 - Die Casting Die Assemblies

Cooling
37
Jiffy-Lok Connector Sockets
®

Jiffy-Lok Flow-Thru Style (Jiffy-Tite)
FITS HOSE USED WITH: STD .
ITEM HOSE STEM MALE, FEMALE OR
DESCRIPTION NUMBER I .D . I .D . EXTENSION PLUGS
JSL0204 1 / 4 3 / 16 JP-(F/B) 250 TO 253
JSL0206 3 / 8 1 / 4 JP-(F/B) 250 TO 253
JSL0306 3 / 8 1 / 4 JP-(F/B) 351 TO 354
JSL0308 1 / 2 3 / 8 JP-(F/B) 351 TO 354
STRAIGHT JSL0504 1 / 2 3 / 8 JP-(F) 553 TO 556
With Clampless Hose Stems for use STEM JSL0506 3 / 4 5 / 8 JP-(F) 553 TO 556
with “Push-To-Lock” Type Hose JSL0214 1 / 4 3 / 16 JP-(F/B) 250 TO 253
JSL0216 3 / 8 1 / 4 JP-(F/B) 250 TO 253
n For use with “Push-to-Lock” type hose only JSL0316 3 / 8 1 / 4 JP-(F/B) 351 TO 354
JSL0318 1 / 2 3 / 8 JP-(F/B) 351 TO 354
n Saves set-up time by eliminating the need for hose clamps JSL0514 1 / 2 3 / 8 JP-(F) 553 TO 556
90° STEM JSL0516 3 / 4 5 / 8 JP-(F) 553 TO 556
n Hose stem barbs mate with “Push-to-Lock” JSL0224 1 / 4 3 / 16 JP-(F/B) 250 TO 253
style rubber hose JSL0226 3 / 8 1 / 4 JP-(F/B) 250 TO 253
JSL0326 3 / 8 1 / 4 JP-(F/B) 351 TO 354
n Popular sizes for interchangeability with existing Jiffy-Tite, JSL0328 1 / 2 3 / 8 JP-(F/B) 351 TO 354
Jiffy-Matic and Jiffy-Matic SV Sockets JSL0524 1 / 2 3 / 8 JP-(F) 553 TO 556
45° STEM JSL0526 3 / 4 5 / 8 JP-(F) 553 TO 556
n More compact and consistently sized than
competitive sockets

n Leakproof brass and stainless steel construction
Jiffy-Lok One-Way Valve Style (Jiffy-Matic)
n Replaceable seals and valves for long service life
FITS HOSE USED WITH: STD .
ITEM
MALE, FEMALE OR
n Socket connector seals are Viton DESCRIPTION NUMBER HOSE STEM EXTENSION PLUGS Cooling | Jiffy-Lok ® Connector Sockets
I .D .
I .D .
JSL0204-V 1 / 4 3 / 16 JP-(F/B) 250 TO 253
JSL0206-V 3 / 8 1 / 4 JP-(F/B) 250 TO 253
Jiffy-Lok SV-Series Valve Style* – JSL JSL0306-V 3 / 8 1 / 4 JP-(F/B) 351 TO 354
FITS HOSE USED WITH: SV-MALE, JSL0308-V 1 / 2 3 / 8 JP-(F/B) 351 TO 354
ITEM HOSE STEM STD . MALE, FEMALE OR STRAIGHT JSL0504-V 1 / 2 3 / 8 JP-(F) 553 TO 556
DESCRIPTION NUMBER I .D . I .D . EXTENSION PLUGS STEM JSL0506-V 3 / 4 5 / 8 JP-(F) 553 TO 556
JSL0204-SV 1 / 4 3 / 16 JP-(F/B) 250 TO 253 (SV) JSL0214-V 1 / 4 3 / 16 JP-(F/B) 250 TO 253
JSL0206-SV 3 / 8 1 / 4 JP-(F/B) 250 TO 253 (SV) JSL0216-V 3 / 8 1 / 4 JP-(F/B) 250 TO 253
STRAIGHT JSL0306-SV 3 / 8 1 / 4 JP-(F/B) 351 TO 354 (SV) JSL0316-V 3 / 8 1 / 4 JP-(F/B) 351 TO 354
STEM JSL0308-SV 1 / 2 3 / 8 JP-(F/B) 351 TO 354 (SV) JSL0318-V 1 / 2 3 / 8 JP-(F/B) 351 TO 354
JSL0214-SV 1 / 4 3 / 16 JP-(F/B) 250 TO 253 (SV) JSL0514-V 1 / 2 3 / 8 JP-(F) 553 TO 556
JSL0216-SV 3 / 8 1 / 4 JP-(F/B) 250 TO 253 (SV) 90° STEM JSL0516-V 3 / 4 5 / 8 JP-(F) 553 TO 556
JSL0316-SV 3 / 8 1 / 4 JP-(F/B) 351 TO 354 (SV) JSL0224-V 1 / 4 3 / 16 JP-(F/B) 250 TO 253
90° STEM JSL0318-SV 1 / 2 3 / 8 JP-(F/B) 351 TO 354 (SV) JSL0226-V 3 / 8 1 / 4 JP-(F/B) 250 TO 253
JSL0224-SV 1 / 4 3 / 16 JP-(F/B) 250 TO 253 (SV) JSL0326-V 3 / 8 1 / 4 JP-(F/B) 351 TO 354
JSL0226-SV 3 / 8 1 / 4 JP-(F/B) 250 TO 253 (SV) JSL0328-V 1 / 2 3 / 8 JP-(F/B) 351 TO 354
JSL0326-SV 3 / 8 1 / 4 JP-(F/B) 351 TO 354 (SV) JSL0524-V 1 / 2 3 / 8 JP-(F) 553 TO 556
45° STEM JSL0328-SV 1 / 2 3 / 8 JP-(F/B) 351 TO 354 (SV) 45° STEM JSL0526-V 3 / 4 5 / 8 JP-(F) 553 TO 556
* SV-Series male plugs must be used to obtain two-way shutoff . NOTE: Use “Push-to-Lock” type hose only . Jiffy-Lok Connector
Installation data available . Contact D-M-E . Sockets are for use with water and water-based coolants
only . Although Jiffy-Lok Connector Sockets are suitable for
temperatures to 400°F, observe the temperature ratings of
your “push-to-lock” hose . Most “push-to-lock” hose has a
temperature rating of 175°F or less . Never exceed 200 psi .

QUANTITY DISCOUNTS: Jiffy Sockets or Plugs . Discounts apply to current Net Prices . Standard sizes may be combined on one order
for quantity discounts . 50 to 99 Less 15%; 100 or more Less 20%
