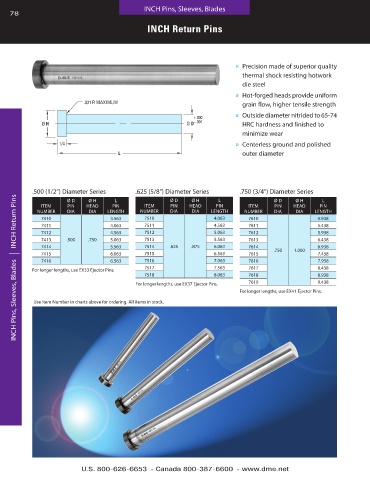

Page 78 - Die Casting Die Assemblies

INCH Pins, Sleeves, Blades
78

INCH Return Pins

■ Precision made of superior quality
thermal shock resisting hotwork
die steel

■ Hot-forged heads provide uniform
.031 R MAXIMUM grain flow, higher tensile strength

■ Outside diameter nitrided to 65-74
+.000
Ø H Ø D –.001 HRC hardness and finished to
minimize wear
1/4 ■ Centerless ground and polished
L outer diameter

.500 (1/2”) Diameter Series .625 (5/8”) Diameter Series .750 (3/4”) Diameter Series
INCH Pins, Sleeves, Blades | INCH Return Pins
Ø D Ø H L Ø D Ø H L Ø D Ø H L
ITEM PIN HEAD PIN ITEM PIN HEAD PIN ITEM PIN HEAD PIN
NUMBER DIA DIA LENGTH NUMBER DIA DIA LENGTH NUMBER DIA DIA LENGTH
7410 3 .563 7510 4 .063 7610 4 .938
7411 4 .063 7511 4 .563 7611 5 .438
7412 4 .563 7512 5 .063 7612 5 .938
7413 .500 .750 5 .063 7513 5 .563 7613 6 .438
7414 5 .563 7514 .625 .875 6 .063 7614 .750 1 .000 6 .938
7415 6 .063 7515 6 .563 7615 7 .438
7416 6 .563 7516 7 .063 7616 7 .938
7517 7 .563 7617 8 .438
For longer lengths, use EX33 Ejector Pins .
7518 8 .063 7618 8 .938
For longer lengths, use EX37 Ejector Pins . 7619 9 .438
For longer lengths, use EX41 Ejector Pins .
Use Item Number in charts above for ordering . All items in stock .
