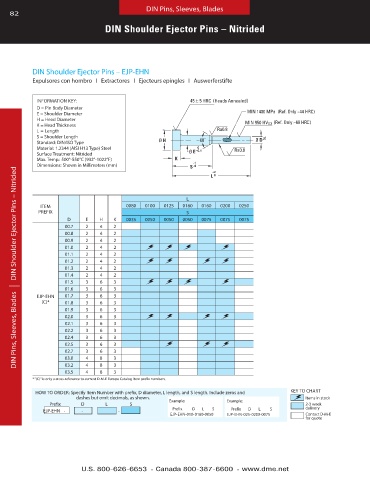

Page 82 - Die Casting Die Assemblies

DIN Pins, Sleeves, Blades
82

DIN Shoulder Ejector Pins – Nitrided

DIN Shoulder Ejector Pins – EJP-EHN
Expulsores con hombro I Extractores I Ejecteurs epingles I Auswerferstifte

INFORMATION KEY: 45 ± 5 HRC (Heads Annealed)
D = Pin Body Diameter
E = Shoulder Diameter MIN 1400 MPa (Ref. Only ~44 HRC)
H = Head Diameter MIN 950 HV 0. 3 (Ref. Only ~68 HRC)
K = Head Thickness
L = Length Ra0. 8
S = Shoulder Length g6
Standard: DIN/ISO Type Ø H 60˚ Ø D
Material: 1 .2344 (AISI H13 Type) Steel - 0.1 Ra0. 8
0
Surface Treatment: Nitrided Ø E
Max . Temp .: 500°-550°C (932°-1022°F) K
Dimensions: Shown in Millimeters (mm) S -1
-2
DIN Pins, Sleeves, Blades | DIN Shoulder Ejector Pins – Nitrided
+2
L 0
L
ITEM 0080 0100 0125 0160 0160 0200 0250
PREFIX S
D E H K 0035 0050 0050 0050 0075 0075 0075
00 .7 2 4 2
00 .8 2 4 2
00 .9 2 4 2
01 .0 2 4 2
01 .1 2 4 2
01 .2 2 4 2
01 .3 2 4 2
01 .4 2 4 2
01 .5 3 6 3
01 .6 3 6 3
EJP-EHN 01 .7 3 6 3
(C)* 01 .8 3 6 3
01 .9 3 6 3
02 .0 3 6 3
02 .1 3 6 3
02 .2 3 6 3
02 .4 3 6 3
02 .5 3 6 3
02 .7 3 6 3
03 .0 4 8 3
03 .2 4 8 3
03 .5 4 8 3
* “(C)” is only a cross-reference to current D-M-E Europe Catalog item prefix numbers .
HOW TO ORDER: Specify Item Number with prefix, D diameter, L length, and S length . Include zeros and KEY TO CHART
dashes but omit decimals, as shown . Items in stock
Prefix D L S Example: Example: 2-3 week
EJP-EHN - - - Prefix D L S Prefix D L S delivery
EJP-EHN-010-0160-0050 EJP-EHN-025-0200-0075 Contact D-M-E
for quote
