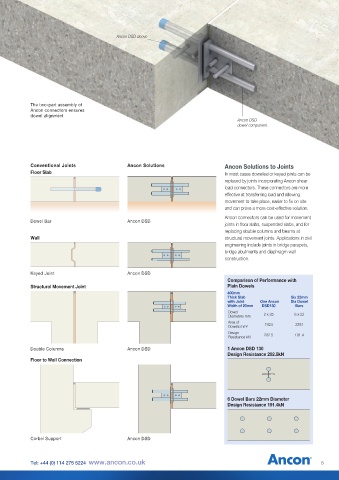

Ancon DSD sleeve

The two-part assembly of
Ancon connectors ensures
dowel alignment
Ancon DSD
dowel component

Conventional Joints Ancon Solutions Ancon Solutions to Joints
Floor Slab In most cases dowelled or keyed joints can be
replaced by joints incorporating Ancon shear
load connectors. These connectors are more
effective at transferring load and allowing
movement to take place, easier to fix on site
and can prove a more cost-effective solution.
Ancon connectors can be used for movement
Dowel Bar Ancon DSD
joints in floor slabs, suspended slabs, and for
replacing double columns and beams at
Wall structural movement joints. Applications in civil
engineering include joints in bridge parapets,
bridge abutments and diaphragm wall
construction.

Keyed Joint Ancon DSD
Comparison of Performance with
Structural Movement Joint Plain Dowels
400mm
Thick Slab Six 22mm
with Joint One Ancon Dia Dowel
Width of 20mm DSD130 Bars
Dowel 2 x 35 6 x 22
Diameters mm
Area of 1924 2281
Dowels mm 2
Design
Resistance kN 202.5 191.4

Double Columns Ancon DSD 1 Ancon DSD 130
Design Resistance 202.5kN
Floor to Wall Connection

6 Dowel Bars 22mm Diameter
Design Resistance 191.4kN

Corbel Support Ancon DSD
