P. 169

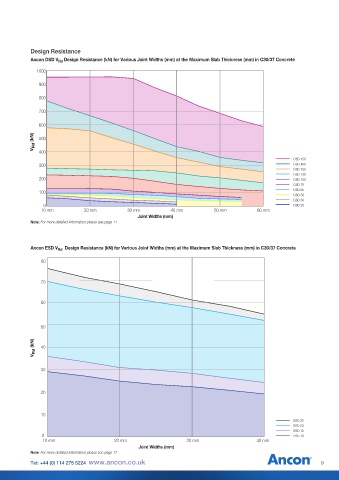

Design Resistance
Ancon DSD V Design Resistance (kN) for Various Joint Widths (mm) at the Maximum Slab Thickness (mm) in C30/37 Concrete
Rd
1000
900
800
700
600
V Rd (kN) 500
400
DSD 450
300 DSD 400
DSD 150
DSD 130
200 DSD 100
DSD 75
100 DSD 65
DSD 50
DSD 30
0 DSD 25
10 mm 20 mm 30 mm 40 mm 50 mm 60 mm
Joint Widths (mm)
Note: For more detailed information please see page 11.
Ancon ESD V Design Resistance (kN) for Various Joint Widths (mm) at the Maximum Slab Thickness (mm) in C30/37 Concrete
Rd
80
70
60
50
V Rd (kN) 40
30
20
10
ESD 25
ESD 20
ESD 15
0 ESD 10
10 mm 20 mm 30 mm 40 mm
Joint Widths (mm)
Note For more detailed information please see page 17.
:
