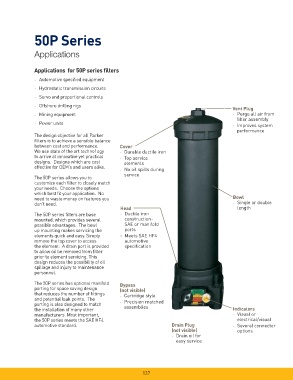

50P Series

Applications

Applications for 50P series fi lters
- Automotive specifi ed equipment
- Hydrostatic transmission circuits

- Servo and proportional controls
- Offshore drilling rigs
Vent Plug
- Mining equipment - Purge all air from
fi lter assembly
- Power units
- Improves system
performance
The design objective for all Parker
fi lters is to achieve a sensible balance
between cost and performance. Cover
We use state of the art techno1ogy - Durable ductile iron
to arrive at innovative yet practical - Top service
designs. Designs which are cost elements
effective for OEM’s and users alike.
- No oil spills during
service
The 50P series allows you to
customize each fi lter to closely match
your needs. Choose the options
which best fi t your application. No
need to waste money on features you Bowl
don’t need. - Single or double
Head length
The 50P series fi lters are base - Ductile iron
mounted, which provides several construction-
possible advan tages. The bowl SAE or manifold
up mounting makes servicing the ports
elements quick and easy. Simply - Meets SAE HF4
remove the top cover to access automotive
the element. A drain port is provided specifi cation
to allow oil be removed from fi lter
prior to element servicing. This
design reduces the possibility of oil
spillage and injury to maintenance
personnel.

The 50P series has optional manifold Bypass
porting for space saving design (not visible)
that re duces the number of fi ttings - Cartridge style
and potential leak points. The
porting is also designed to match - Precision matched
the installation of many other assemblies Indicators
manufacturers. Most important, - Visual or
the 50P series meets the SAE HF4 electrical/visual
automotive standard. Drain Plug - Several connector
(not visible) options
- Drain oil for
easy service
