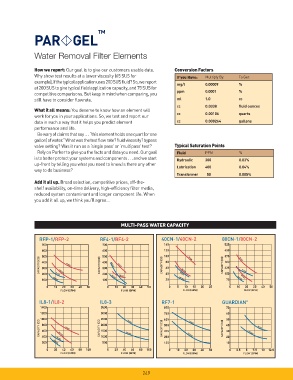

Page 254 - Parker - Hydraulic and Lube Filtration Products

™
PAR GEL

Water Removal Filter Elements

How we report: Our goal is to give our customers usable data. Conversion Factors
Why show test results at a lower viscosity (65 SUS for If you Have: Multiply By: To Get:
example), if the typical application uses 200 SUS fl uid? So, we report
mg/l 0.00009 %
at 200 SUS to give typical fi eld application capacity, and 75 SUS for
ppm 0.0001 %
competitive comparisons. But keep in mind when comparing, you
still have to consider fl owrate. ml 1.0 cc
cc 0.0338 fl uid ounces
What it all means: You deserve to know how an element will
cc 0.00106 quarts
work for you in your applications. So, we test and report our
data in such a way that it helps you predict element cc 0.000264 gallons
performance and life.
Be wary of claims that say . . . “this element holds one quart (or one
gallon) of water.” What was the test fl ow rate? fl uid viscosity? bypass
valve setting? Was it run as a ‘single pass’ or ‘multipass’ test? Typical Saturation Points
Rely on Parker to give you the facts and data you need. Our goal Fluid PPM %
is to better protect your systems and components . . . and we start
Hydraulic 300 0.03%
up-front by telling you what you need to know.Is there any other
Lubrication 400 0.04%
way to do business?
Transformer 50 0.005%
Add it all up. Broad selection, competitive prices, off-the-
shelf availability, on-time delivery, high-effi ciency fi lter media,
reduced system contaminant and longer component life. When
you add it all up, we think you’ll agree...

MULTI-PASS WATER CAPACITY

RFP-1/RFP-2 RF4-1/RF4-2 40CN-1/40CN-2 80CN-1/80CN-2
700 700 140 525
600 600 120 450
500 500 100 75 SUS 375 75 SUS
CAPACITY (CC) 400 200 SUS 75 SUS CAPACITY (CC) 400 200 SUS 75 SUS CAPACITY (CC) 80 200 SUS CAPACITY (CC) 225 75 SUS
300
60
300
300
200
75 SUS
75 SUS
75
20
100 200 SUS 200 200 SUS 75 SUS 40 200 SUS 150 200 SUS 200 SUS
100
0 10 20 30 40 50 0 10 20 30 40 50 0 5 10 15 20 25 0 10 20 30 40 50
FLOW (GPM) FLOW (GPM) FLOW (GPM) FLOW (GPM)
IL8-1/IL8-2 IL8-3 RF7-1 GUARDIAN ®
1400 3500 875 70
1200 3000 750 60
1000 2500 75 SUS 625 75 SUS 50
CAPACITY (CC) 800 200 SUS 75 SUS CAPACITY (CC) 2000 200 SUS CAPACITY (CC) 500 200 SUS CAPACITY (CC) 40 200 SUS 75 SUS
600
1500
375
30
400
75 SUS
500
200 200 SUS 1000 250 20
10
125
200 SUS
0 20 40 60 80 100 0 20 40 60 80 100 0 10 20 30 40 50 0 2.5 5 7.5 10 12.5
FLOW (GPM) FLOW (GPM) FLOW (GPM) FLOW (GPM)
