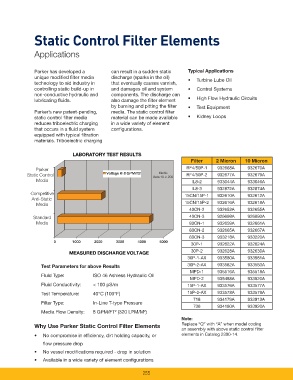

Page 260 - Parker - Hydraulic and Lube Filtration Products

Static Control Filter Elements

Applications

Parker has developed a can result in a sudden static Typical Applications
unique modifi ed fi lter media discharge (sparks in the oil) • Turbine Lube Oil
technology to aid industry in that eventually causes varnish,
controlling static build-up in and damages oil and system • Control Systems
non-conductive hydraulic and components. The discharge can
lubricating fl uids. also damage the fi lter element • High Flow Hydraulic Circuits
by burning and pitting the fi lter • Test Equipment
Parker’s new patent-pending, media. The static control fi lter
static control fi lter media material can be made available • Kidney Loops
reduces triboelectric charging in a wide variety of element
that occurs in a fl uid system confi gurations.
equipped with typical fi ltration
materials. Triboelectric charging

LABORATORY TEST RESULTS
Filter 2 Micron 10 Micron

Parker RF4/50P-1 932668A 932670A
Media
Static Control Voltage @ 8 GPM/ft2 RF4/50P-2 932677A 932679A
Beta 10 > 200
Media IL8-2 933044A 933046A
IL8-3 932872A 932874A
Competitive 15CN/15P-1 932610A 932612A
Anti-Static
Media 15CN/15P-2 932616A 932618A
40CN-2 932653A 932655A
Standard 40CN-3 926698A 926893A
Media 80CN-1 932659A 932661A
80CN-2 932665A 932667A
80CN-3 933218A 933220A
30P-1 932622A 932624A
0 1000 2000 3000 4000 5000
30P-2 932628A 932630A
MEASURED DISCHARGE VOLTAGE
30P-1-AX 933580A 933581A
Test Parameters for above Results 30P-2-AX 933582A 933583A
MPD-1 935516A 935518A
Fluid Type: ISO 46 Ashless Hydraulic Oil
MPD-2 935488A 933520A
Fluid Conductivity: < 100 pS/m 15P-1-AX 933576A 933577A
Test Temperature: 40°C (100°F) 15P-2-AX 933578A 933579A
718 934179A 933913A
Filter Type: In-Line T-type Pressure
736 934180A 933920A
2
2
Media Flow Density: 8 GPM/FT (320 LPM/M )
Note:
Why Use Parker Static Control Filter Elements Replace “Q” with “A” when model coding
an assembly with above static control fi lter
• No compromise in effi ciency, dirt holding capacity, or elements in Catalog 2300-14.
fl ow pressure drop
• No vessel modifi cations required - drop in solution
• Available in a wide variety of element confi gurations

255
