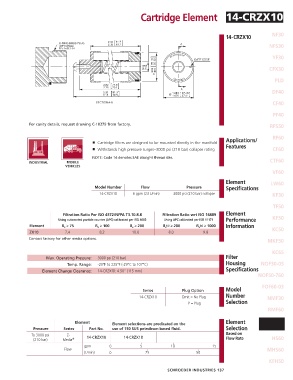

Page 139 - Schroeder - Hydraulic And Lube Filtration

Cartridge Element 14-CRZX10

14-CRZX10 NF30
NFS30

YF30

CFX30

PLD

DF40

CF40

PF40

For cavity details, request drawing C-10379 from factory. RFS50

Applications/ RF60
■ Cartridge filters are designed to be mounted directly in the manifold
Features
■ Withstands high pressure surges –3000 psi (210 bar) collapse rating CF60
NOTE: Code 14 denotes SAE straight thread size.
CTF60

VF60
Element LW60
Model Number Flow Pressure Specifications
14-CRZX10 6 gpm (23 L/min) 3000 psi (210 bar) collapse KF30

TF50
Filtration Ratio Per ISO 4572/NFPA T3.10.8.8 Filtration Ratio wrt ISO 16889 Element
Using automated particle counter (APC) calibrated per ISO 4402 Using APC calibrated per ISO 11171 Performance KF50
Element ß x ≥ 75 ß x ≥ 100 ß x ≥ 200 ß x ≥ 200 ß x ≥ 1000 Information
(c)
(c)
ZX10 7.4 8.2 10.0 8.0 9.8 KC50
Contact factory for other media options.
MKF50
KC65
Max. Operating Pressure: 3000 psi (210 bar) Filter
Temp. Range: -20°F to 225°F (-29°C to 107°C) Housing NOF30-05
Element Change Clearance: 14-CRZX10: 4.50" (115 mm) Specifications
NOF50-760

Series Plug Option Model FOF60-03
14-CRZX10 Omit = No Plug Number NMF30
P = Plug Selection
RMF60

Element Element selections are predicated on the Element Cartridge
Pressure Series Part No. use of 150 SUS petroleum based fluid. Selection Elements
To 3000 psi Z- 14-CRZX10 14-CRZX10 Based on
(210 bar) Media ® Flow Rate HS60
gpm 0 5 10 15
Flow MHS60
(L/min) 0 25 50
KFH50

SCHROEDER INDUSTRIES 137
