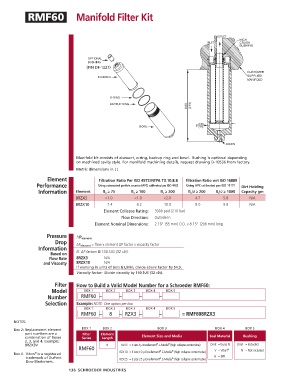

RMF60 Manifold Filter Kit

(P/N DF-1227)

Manifold kit consists of element, o-ring, backup ring and bowl. Bushing is optional depending
on machined cavity style. For manifold machining details, request drawing D-10536 from factory.
Metric di men sions in ( ).
Element Filtration Ratio Per ISO 4572/NFPA T3.10.8.8 Filtration Ratio wrt ISO 16889
Performance Using automated particle counter (APC) calibrated per ISO 4402 Using APC calibrated per ISO 11171 Dirt Holding
Information Element ß x ≥ 75 ß x ≥ 100 ß x ≥ 200 ß x ≥ 200 ß x ≥ 1000 Capacity gm
(c)
(c)
8RZX3 <1.0 <1.0 <2.0 4.7 5.8 N/A
8RZX10 7.4 8.2 10.0 8.0 9.8 N/A
Element Collapse Rating: 3000 psid (210 bar)
Flow Direction: Outside In
Element Nominal Dimensions: 2.18" (55 mm) O.D. x 8.15" (206 mm) long

Pressure ∆P element
Drop ∆P = flow x element ∆P factor x viscosity factor
Information element
Based on El. ∆P factors @ 150 SUS (32 cSt):
Flow Rate 8RZX3 N/A
and Viscosity 8RZX10 N/A
If working in units of bars & L/min, divide above factor by 54.9.
Viscosity factor: Divide viscosity by 150 SUS (32 cSt).

Filter How to Build a Valid Model Number for a Schroeder RMF60:
Model BOX 1 BOX 2 BOX 3 BOX 4 BOX 5
Number RMF60 – – – –
Selection Example: NOTE: One option per box
BOX 1 BOX 2 BOX 3 BOX 4 BOX 5
RMF60 – 8 – RZX3 – – = RMF608RZX3
NOTES:
Box 2: Replacement element BOX 1 BOX 2 BOX 3 BOX 4 BOX 5
part numbers are a Filter Element
combination of Boxes Series Length Element Size and Media Seal Material Bushing
2, 3, and 4. Example:
®
®
8RZX3V 8 RZX3 = E size 3 µ Excellement Z-Media (high collapse center tube) Omit = Buna N Omit = Included
RMF60 V = Viton ® N = Not included
®
®
®
Box 4. Viton is a registered RZX10 = E size 10 µ Excellement Z-Media (high collapse center tube)
trademark of DuPont RZX25 = E size 25 µ Excellement Z-Media (high collapse center tube) H = EPR
®
®
Dow Elastomers.
