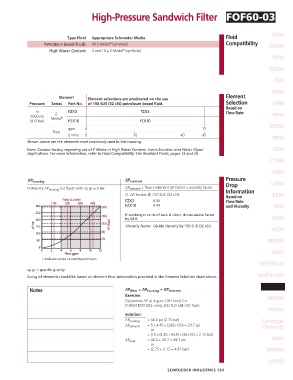

Page 133 - Schroeder - Hydraulic And Lube Filtration

High-Pressure Sandwich Filter FOF60-03

Type Fluid Appropriate Schroeder Media Fluid NF30
Petroleum Based Fluids All Z-Media (synthetic) Compatibility NFS30
®
High Water Content 3 and 10 µ Z-Media (synthetic)
®
YF30
CFX30

PLD

DF40
Element Element selections are predicated on the use Element
Pressure Series Part No. of 150 SUS (32 cSt) petroleum based fluid. Selection CF40
Based on
To FZX3 FZX3 Flow Rate
Z-
6000 psi Media ® PF40
(415 bar) FZX10 FZX10
RFS50
gpm 0 12
Flow
(L/min) 0 20 40 45 RF60
Shown above are the elements most commonly used in this housing.
Note: Contact factory regarding use of E Media in High Water Content, Invert Emulsion and Water Glycol CF60
Applications. For more information, refer to Fluid Compatibility: Fire Resistant Fluids, pages 19 and 20.
CTF60

VF60
∆P housing ∆P element Pressure LW60
FOF60-03 ∆P housing for fluids with sp gr = 0.86: ∆P element = flow x element ∆P factor x viscosity factor Drop
Information
El. ∆P factors @ 150 SUS (32 cSt): Based on KF30
FZX3 6.06 Flow Rate
FZX10 4.45 and Viscosity TF50
If working in units of bars & L/min, divide above factor
by 54.9. KF50
Viscosity factor: Divide viscosity by 150 SUS (32 cSt).
KC50

MKF50

KC65

NOF30-05
sp gr = specific gravity
Sizing of elements should be based on element flow information provided in the Element Selection chart above. NOF50-760
FOF60-03
Notes ∆P filter = ∆P housing + ∆P element
Exercise: NMF30
Determine ∆P at 4 gpm (19 L/min) for
FOF601FZX1003 using 200 SUS (44 cSt) fluid.
RMF60
Solution:
∆P housing = 40.0 psi [2.75 bar] Cartridge
∆P element = 5 x 4.45 x (200÷150) = 29.7 psi Elements
or
= [19 x (4.45 ÷54.9) x (44÷32) = 2.12 bar]
∆P total = 40.0 + 29.7 = 69.7 psi HS60
or
= [2.75 + 2.12 = 4.87 bar] MHS60

KFH50

SCHROEDER INDUSTRIES 131
