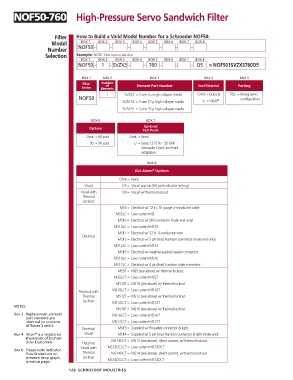

NOF50-760 High-Pressure Servo Sandwich Filter

Filter How to Build a Valid Model Number for a Schroeder NOF50:
Model BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6 BOX 7 BOX 8
Number NOF50– – – – – – –
Selection Example: NOTE: One option per box
BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6 BOX 7 BOX 8
NOF50– 1 – SVZX3 – – 760 – – – D5 = NOF501SVZX3760D5

BOX 1 BOX 2 BOX 3 BOX 4 BOX 5
Filter Number
of
Series Elements Element Part Number Seal Material Porting
1 SVZX3 = S size 3 µ high collapse media Omit = Buna N 760 = Moog servo
NOF50 ® configuration
SVZX10 = S size 10 µ high collapse media V = Viton
SVZX25 = S size 25 µ high collapse media

BOX 6 BOX 7
Optional
Options
Test Point
Omit = 60 psid Omit = None
7
90 = 90 psid U = Series 1215 ⁄16"-20 UNF
Schroeder Check Test Point
installation
BOX 8
Dirt Alarm Options
®
Omit = None
Visual D5 = Visual pop-up (60 psid indicator setting)
Visual with D8 = Visual w/ thermal lockout
Thermal
Lockout
MS5 = Electrical w/ 12 in. 18 gauge 4-conductor cable
MS5LC = Low current MS
MS10 = Electrical w/ DIN connector (male end only)
MS10LC = Low current MS10
MS11 = Electrical w/ 12 ft. 4-conductor wire
Electrical
MS12 = Electrical w/ 5 pin Brad Harrison connector (male end only)
MS12LC = Low current MS12
MS16 = Electrical w/ weather-packed sealed connector
MS16LC = Low current MS16
MS17LC = Electrical w/ 4 pin Brad Harrison male connector
MS5T = MS5 (see above) w/ thermal lockout
MS5LCT = Low current MS5T
MS10T = MS10 (see above) w/ thermal lockout
Electrical with MS10LCT = Low current MS10T
Thermal MS12T = MS12 (see above) w/ thermal lockout
Lockout MS12LCT = Low current MS12T
NOTES:
MS16T = MS16 (see above) w/ thermal lockout
Box 3. Replacement element MS16LCT = Low current MS16T
part numbers are
identical to contents MS17LCT = Low current MS17T
of Boxes 3 and 4.
Electrical MS13 = Supplied w/ threaded connector & light
®
Box 4. Viton is a registered Visual MS14 = Supplied w/ 5 pin Brad Harrison connector & light (male end)
trademark of DuPont
Dow Elastomers. Electrical MS13DCT = MS13 (see above), direct current, w/ thermal lockout
Visual with MS13DCLCT = Low current MS13DCT
Box 6. Please note indicator
flow limitations on Thermal MS14DCT = MS14 (see above), direct current, w/ thermal lockout
pressure drop graph, Lockout MS14DCLCT = Low current MS14DCT
previous page.
