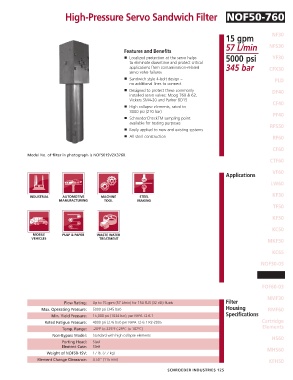

High-Pressure Servo Sandwich Filter NOF50-760

15 gpm NF30
57 L/min NFS30
Features and Benefits
■ Localized protection at the servo helps 5000 psi YF30
to eliminate downtime and protect critical
applications from contamination-related 345 bar CFX30
servo valve failures
■ Sandwich style 4-bolt design – PLD
no additional lines to connect
■ Designed to protect these commonly DF40
installed servo valves: Moog 760 & 62,
Vickers SM4-20 and Parker BD15
CF40
■ High collapse elements, rated to
3000 psi (210 bar)
PF40
■ SchroederCheckTM sampling point
available for testing purposes
RFS50
■ Easily applied to new and existing systems
■ All steel construction RF60

CF60
Model No. of filter in photograph is NOF501SVZX3760.
CTF60

VF60
Applications
LW60

KF30

TF50

KF50

KC50

MKF50

KC65

NOF30-05

NOF50-760

FOF60-03

NMF30
Flow Rating: Up to 15 gpm (57 L/min) for 150 SUS (32 cSt) fluids Filter
Max. Operating Pressure: 5000 psi (345 bar) Housing RMF60
Min. Yield Pressure: 15,000 psi (1034 bar), per NFPA T2.6.1 Specifications
Rated Fatigue Pressure: 4000 psi (276 bar) per NFPA T2-6.1 R2-2005 Cartridge
Temp. Range: -20°F to 225°F (-29°C to 107°C) Elements
Non-Bypass Model: Standard with high collapse elements HS60
Porting Head: Steel
Element Case: Steel
Weight of NOF50-1SV: 17 lb. (7.7 kg) MHS60
Element Change Clearance: 4.50" (115 mm) KFH50

SCHROEDER INDUSTRIES 125
