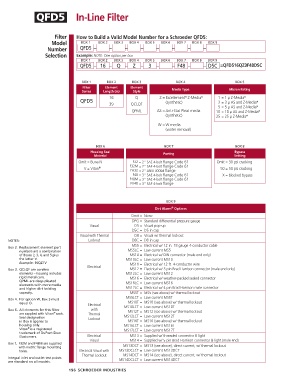

Page 198 - Schroeder - Hydraulic And Lube Filtration

QFD5 In-Line Filter

Filter How to Build a Valid Model Number for a Schroeder QFD5:
Model BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6 BOX 7 BOX 8 BOX 9
Number QFD5 – – – – – – – –
Selection Example: NOTE: One option per box
BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6 BOX 7 BOX 8 BOX 9
QFD5 – 16 – Q – Z – 3 – – F48 – – D5C =QFD516QZ3F48D5C

BOX 1 BOX 2 BOX 3 BOX 4 BOX 5
Filter Element Element
Series Length (in) Style Media Type Micron Rating
16 Q Z = Excellement Z-Media 1 = 1 µ Z-Media ®
®
®
QFD5 (synthetic) 3 = 3 µ AS and Z-Media ®
39 QCLQF
5 = 5 µ AS and Z-Media ®
QPML AS = Anti-Stat Pleat media 10 = 10 µ AS and Z-Media ®
(synthetic) 25 = 25 µ Z-Media ®
W = W media
(water removal)

BOX 6 BOX 7 BOX 8
Housing Seal Porting Bypass
Material Setting
Omit = Buna N F32 = 2" SAE 4-bolt flange Code 61 Omit = 30 psi cracking
F32M = 2" SAE 4-bolt flange Code 61
V = Viton ® 50 = 50 psi cracking
FA32 = 2" ANSI 3000# flange
F48 = 3" SAE 4-bolt flange Code 61 X = Blocked bypass
F48M = 3" SAE 4-bolt flange Code 61
FA48 = 3" SAE 4-bolt flange

BOX 9
®
Dirt Alarm Options
Omit = None
DPG = Standard differential pressure gauge
Visual D5 = Visual pop-up
D5C = D5 in cap
Visual with Thermal D8 = Visual w/ thermal lockout
NOTES: Lockout D8C = D8 in cap
MS5 = Electrical w/ 12 in. 18 gauge 4-conductor cable
Box 2. Replacement element part
numbers are a combination MS5LC = Low current MS5
of Boxes 2, 3, 4, and 5 plus MS10 = Electrical w/ DIN connector (male end only)
the letter V. MS10LC = Low current MS10
Example: 16QZ1V MS11 = Electrical w/ 12 ft. 4-conductor wire
Electrical
Box 3. QCLQF are coreless MS12 = Electrical w/ 5 pin Brad Harrison connector (male end only)
elements – housing includes MS12LC = Low current MS12
rigid metal core. MS16 = Electrical w/ weather-packed sealed connector
QPML are deep-pleated MS16LC = Low current MS16
elements with more media
and higher dirt holding MS17LC = Electrical w/ 4 pin Brad Harrison male connector
capacity. MS5T = MS5 (see above) w/ thermal lockout
Box 4. For option W, Box 3 must MS5LCT = Low current MS5T
equal Q. Electrical MS10T = MS10 (see above) w/ thermal lockout
Box 6. All elements for this filter with MS10LCT = Low current MS10T
MS12T = MS12 (see above) w/ thermal lockout
are supplied with Viton seals. Thermal
®
Seal designation Lockout MS12LCT = Low current MS12T
in Box 6 applies to MS16T = MS16 (see above) w/ thermal lockout
housing only. MS16LCT = Low current MS16T
Viton is a registered MS17LCT = Low current MS17T
®
trade mark of DuPont Dow
Elastomers. Electrical MS13 = Supplied w/ threaded connector & light
Visual MS14 = Supplied w/ 5 pin Brad Harrison connector & light (male end)
Box 7. F32M and F48M are supplied
with metric flange mounting MS13DCT = MS13 (see above), direct current, w/ thermal lockout
holes. Electrical Visual with MS13DCLCT = Low current MS13DCT
Thermal Lockout MS14DCT = MS14 (see above), direct current, w/ thermal lockout
Integral inlet and outlet test points MS14DCLCT = Low current MS14DCT
are standard on all models.
196 SCHROEDER INDUSTRIES
